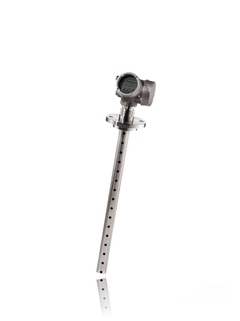

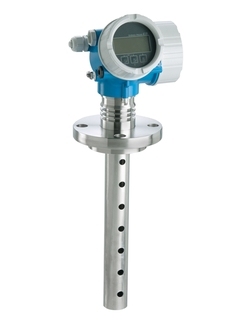

Endress+Hauser Levelflex FMP55 Interface Meter, Guided Wave Radar + Capacitance Fusion Technology (Emulsion Layer Special)

Levelflex FMP55 is a high-precision interface meter adopting sensor fusion technology, pioneered by Endress+Hauser, innovatively integrating capacitance measurement and guided wave radar technology to completely solve the interface measurement problem under working conditions with emulsion layers.

The device can continuously and stably obtain dual measurement values of liquid level and interface under complex working conditions with emulsion layers, unaffected by liquid level fluctuations, foam and medium changes. It has become a benchmark multi-parameter measurement product in the field of interface measurement, especially in the oil & gas, chemical and petrochemical industries.

• Endress+Hauser's original sensor fusion technology, integrating capacitance and guided wave radar, dedicated to interface measurement with emulsion layers
• Stably measures liquid interfaces with emulsion layers, obtains both liquid level and total level data simultaneously, measurement unaffected by liquid level fluctuations, foam and medium changes
• HistoROM data management concept enables fast and simple commissioning, maintenance and diagnostics, reducing maintenance costs
• New innovative multi-echo tracking design greatly improves measurement reliability and adapts to complex working conditions
• Hardware and software developed according to IEC 61508 standard, reaching SIL3 safety integrity level to ensure production safety
• Heartbeat Technology ensures efficient and safe plant operation throughout the entire life cycle
• Seamless integration into control or asset management systems with intuitive guided operation, suitable for on-site and control system operation
• Three probe types available: rod, cable and coaxial rod, adapting to different measurement scenarios with flexible application
• Supports Bluetooth® commissioning and SmartBlue App operation for convenient and efficient maintenance
• Certified by international authoritative certifications such as SIL, WHG, Ex and marine, saving certification time and economic costs

• Oil & gas industry: interface measurement of crude oil, refined oil tanks/separators with emulsion layers
• Chemical and petrochemical industries: interface measurement of solvents, acids, alkalis, chemical raw materials and other media with emulsion layers
• Industrial scenarios requiring simultaneous measurement of liquid level and total level
• Complex working conditions with emulsion layers, fluctuating liquid levels and more foam
• Interface measurement scenarios with high temperature, high pressure and corrosive media
• Scenarios requiring SIL3, NACE and marine certifications such as petrochemical and offshore platforms

• Measuring Principle：Guided Wave Radar (integrating capacitance measurement technology)
• Measuring Mode：Liquid interface measurement, simultaneous measurement of liquid level and total level (for working conditions with emulsion layers)
• Accuracy：Rod/Cable/Coaxial probe: ±2 mm (0.08 in)
• Process Temperature：-40 … +200 °C (-40 … +392 °F)
• Ambient Temperature：-40 … +80 °C (-40 … +176 °F)
• Process Pressure：Vacuum … 40 bar (Vacuum … 580 psi)
• Probe Type：Rod probe, Cable probe, Coaxial rod probe
• Max Measuring Length：Rod: 4 m (13 ft); Cable: 10 m (33 ft); Coaxial rod: 6 m (20 ft)
• Min. Dielectric Constant：DK＞1.4 (all probe types)
• Wetted Parts：
•
• - Rod probe: 316L, PTFE, PFA
•
• - Cable probe: 316, 316L, PTFE, PFA
•
• - Coaxial probe: 316L, PTFE, PFA
•
• Process Connections：Flange: ASME 1 1/2"...6", DN50...DN150, JIS 10K (1½" thread optional)
• Output / Communication：4…20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus (2-wire / 4-wire HART optional)
• Certifications：
•
• - Ex: ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, KC, EAC
•
• - Safety: SIL3, WHG overflow protection
•
• - Design: EN 10204-3.1, NACE MR0175, MR0103, ASME B31.1, B31.3, AD2000
•
• - Marine: GL, ABS, LR, BV, DNV
•
• Options：Split sensor (with 3 m/9 ft cable)
