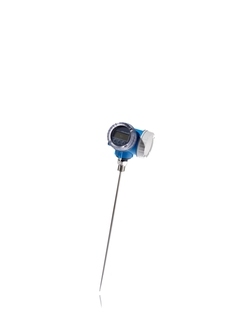

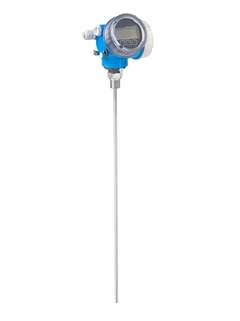

The Endress+Hauser Levelflex FMP50 is designed for continuous level measurement in standard liquid tanks, utilities, and light slurries (-20 to +80°C, up to 6 bar).
Extreme Accuracy: ±2mm precision immune to steam, surface foam, and density changes.
Flexible Probes: Rod probe up to 4m and cable probe up to 12m with DK > 1.6 capability.
Safety Certified: SIL 2 / SIL 3 integrity (IEC 61508) with Heartbeat Technology diagnostics.
Fast Supply: Original units in stock with 24h fast quote and global dispatch support.
Traditional differential pressure transmitters or non-contact ultrasonic level sensors often cause false trips due to density shifts, surface agitation, or heavy vapor layers. Levelflex FMP50 addresses these specific plant operating hazards:
The table below outlines the mechanical, thermal, and electrical limits for specifying the FMP50 in industrial utilities and process storage tanks.
| Technical Parameter | Specification Value | Engineering Selection Note |
|---|---|---|
| Measuring Principle | Guided Wave Radar (Time-of-Flight) | High-frequency microwave pulse guided along probe |
| Accuracy Standard | ±2 mm (±0.08 in) | Valid for both rod and cable probe variants |
| Process Temperature | -20 to +80 °C (-4 to +176 °F) | Do not exceed 80 °C at the process flange |
| Process Pressure | Vacuum to 6 bar (87 psi) | Suitable for atmospheric and low-pressure utility tanks |
| Min. Dielectric Constant | DK > 1.6 | Covers hydrocarbons, water, slurries, and solvents |
| Max Measuring Range | Rod: 4 m / Cable: 12 m | Custom-cut lengths available upon request |
| Wetted Materials | 316L SS, PPS, Viton (FKM) | Verify chemical compatibility with Viton seals |
| Process Connections | Thread: G 3/4, MNPT 3/4; Flange: UNI | Fits standard vessel nozzle connections |
| Outputs / Protocols | 4–20 mA HART, PROFIBUS PA, FF | Wireless Bluetooth configuration via SmartBlue App |
| Safety Integrity Level | SIL2 / SIL3 (IEC 61508) | Suitable for safety instrumented overflow protection |
Choosing between FMP50 and FMP51 is purely a matter of temperature, pressure, and aggressive chemical boundaries. Over-specifying FMP51 in basic utility storage tanks unnecessarily inflates capital expenditure.
| Selection Boundary | Levelflex FMP50 (Standard Utility) | Levelflex FMP51 (Severe Process) |
|---|---|---|
| Max Temperature | +80 °C | +200 °C |
| Max Pressure | 6 bar | 40 bar |
| Max Cable Length | 12 m | 45 m |
| Wetted Materials | 316L, PPS, Viton | Hastelloy C, 316L, PTFE |
| Cost Profile | Economical Base Price | High-Spec Premium Price |
| Engineering Guidance | Cuts budget for CIP, fuel & water storage tanks | Required for severe acid & high-pressure reactors |
A: Yes. The guided microwave radar pulse follows the probe through light-to-moderate surface foam and reflects off the true liquid boundary below. Unlike non-contact ultrasonic sensors, foam bubbles do not scatter the radar signal back to the electronics.
A: The minimum dielectric constant required is DK = 1.6. For media with DK < 1.9, a coaxial probe or stilling well is recommended to concentrate the microwave pulse energy for reliable measurement.
A: Use the SmartBlue App on any mobile device via secure Bluetooth communication (up to 10 m range). Commissioning, envelope curve diagnostics, and troubleshooting can be performed safely without opening the enclosure cover.
