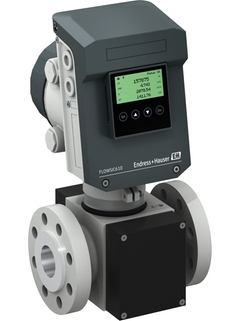

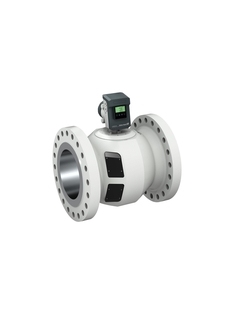

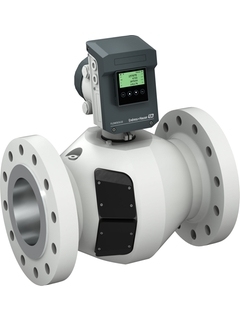

FLOWSIC610 Hydrogen Ultrasonic Flow Meter: High-Pressure Gas Phase Fiscal Measurement
In the rapidly evolving infrastructure of the clean energy transition, measuring high-purity hydrogen (H2) gas presents severe thermodynamic challenges for conventional volumetric instrumentation. Due to the exceptionally low molecular weight and low dynamic density profiles of hydrogen molecules, traditional mechanical or differential meters introduce high kinetic errors and unacceptable energy losses. The FLOWSIC610 Hydrogen Ultrasonic Flow Meter represents the global industry benchmark for high-accuracy gas-phase custody transfer, engineered explicitly to handle pure hydrogen streams and variable hydrogen-natural gas blends across high-pressure utility transport networks.

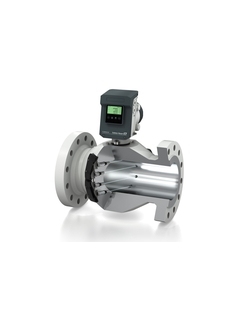

Operating via state-of-the-art gas-phase ultrasonic transit-time difference technology, the FLOWSIC610 utilizes pairs of non-contact acoustically isolated transducers to send ultrasonic pulses diagonally across the fluid stream. The microscopic time delta between the upstream and downstream wave propagation remains directly proportional to the true gas velocity, governed precisely by the real-time speed of sound (SoS) dynamic matrix. This inline non-intrusive architecture allows the meter to maintain an extended 1:160 dynamic turndown ratio across large pipeline horizons (DN50 to DN400) without creating an internal flow obstruction or introducing pipeline pressure drop.
π Core Engineering Features & Gas Loop Benefits
- MID-Certified Fiscal Excellence: Delivers Class 1 metrological accuracy verification, securing legal-for-trade custody transfer accountability at electrolyzer outlets and grid injection terminals.
- Real-Time Speed of Sound (SoS) Purity Tracking: Employs diagnostic acoustic telemetry to automatically compute real-time hydrogen purity indicators (exceeding 95% concentration boundaries) without deploying expensive online gas chromatographs.
- Extreme Velocity Boundary Resilience: Structurally rated to execute precision velocity tracking up to 60 meters per second (200 feet per second), fully dampening the acoustic attenuation common in high-flow, low-density gas loops.
- Zero Operational Pressure Drop: Full-bore spool piece geometry ensures zero internal friction coefficients, maximizing compressor terminal energy efficiency and eliminating mechanical fatigue points.
- Hazardous Area Intrinsically Safe Shell: Dual certified under ATEX/IECEx II 2(1) G Ex db ia [ia Ga] IIC T4 Gb standards for absolute safe deployment in hydrogen zone 1 and zone 2 processing fields.
FLOWSIC610 Technical Specifications Matrix
| Metrological Parameter | Technical Threshold & Operational Boundaries |
|---|---|
| Measurement Principle | Gas-Phase Ultrasonic Transit-Time Difference |
| Primary Process Variables | Continuous volumetric flow, actual gas velocity, speed of sound (SoS), real-time H2 purity indicators |
| Measuring Medium Window | High-purity Hydrogen (Purity baseline standard >95%; >90% accommodated upon request) |
| Nominal Line Dimensions | DN50 to DN400 (2-inch to 16-inch nominal pipeline size executions) |
| Baseline Accuracy Limits | Standard: ≤ ±0.5% (Dry factory calibrated) Optimized Fiscal: ≤ ±0.1% (Following high-pressure loop gas calibration) |
| Repeatability Verification | ≤ ±0.05% under stable operational Reynolds numbers |
| Process Pressure Boundaries | 15 bar to 102.1 bar gauge limits (Low-pressure optimization available from 7 bar gauge) |
| Fluid Temperature Range | -40 °C to +85 °C (-40 °F to +185 °F) absolute boundary limits |
| Communication Protocols | Dual Modbus RS-485 (RTU/ASCII architectures), Native USB, Secure Bluetooth, 4x Digital Outputs |
System Integration & Multi-Variable Telemetry Alignment
To preserve maximum custody transfer measurement security and maintain compliance with rigid MID/OIML fiscal rules, gas-phase ultrasonic hardware must operate within an integrated flow computation cluster. Environmental fluctuations in static line pressure and processing temperatures will instantly shift compressible gas density factors. For optimal mass-flow conversion calculations, Hanyu Zhilian International recommends pairing the FLOWSIC spool piece directly with a high-tier Rosemount 3051S Pressure Transmitter. This co-planar diagnostic configuration supplies real-time static pressure loop compensation directly to the flow computer, insulating the billing network from dynamic density drifts during compressor station start-ups.
FLOWSIC610 Hydrogen Meter Technical FAQ
Q1: How does the FLOWSIC610 accurately calculate real-time hydrogen purity without an external gas chromatograph?
A1: The meter relies on high-resolution Speed of Sound (SoS) diagnostic algorithms. Because the molecular mass of hydrogen is drastically lower than that of common contaminants like nitrogen, methane, or carbon dioxide, any influx of foreign gas instantly slows down the acoustic transit velocity. By tracking these microsecond fluctuations in the transit-time wave propagation and matching them against pre-programmed thermodynamic gas tables, the FLOWSIC610 core transmitter computes continuous hydrogen purity tracking metrics automatically, significantly lowering plant capital MRO costs.

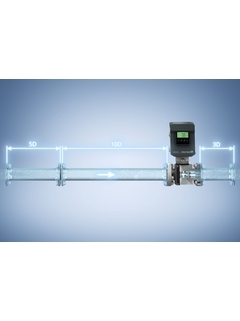

Q2: What straight-run pipe configurations are required to maintain Class 1 accuracy on small-bore hydrogen pipelines?
A2: For heavy-duty industrial lines rated DN100 and above, a baseline upstream straight run of 10 nominal diameters (10DN) is required to secure a fully developed symmetric velocity profile. On smaller, high-velocity distribution lines such as DN50 or DN80, the fluid dynamic boundary layers develop differently; therefore, an upstream run of 5 nominal diameters (5DN) integrated with a certified perforated flow conditioner is strictly required. This layout removes fluid swirls introduced by preceding pressure reducing valves or multi-plane headers, locking in custody transfer accuracy.
Q3: Why is a zero pressure drop profile critical for green hydrogen electrolyzer production facilities?
A3: Green hydrogen electrolyzers typically generate output gas at low baseline pressures. Inserting a restrictive inline flowmeter with a mechanical turbine rotor or an internal bluff body (shedder bar) forces a severe localized pressure drop, requiring secondary compressor work to stabilize the transport loop. The FLOWSIC610 features a completely smooth, full-bore spool piece geometry with zero internal moving parts or structural intrusions. This design provides a zero pressure drop profile, maximizing net plant energy efficiency and preventing localized cavitation or thermal spikes in explosive hydrogen atmospheres.
