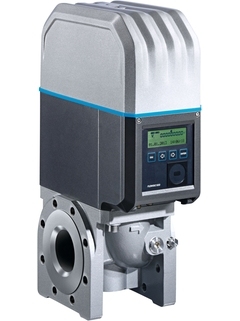

The FLOWSIC500 is a cutting-edge ultrasonic flowmeter engineered specifically for natural gas distribution in municipal and industrial sectors. In an industry moving toward digitalization, the FLOWSIC500 provides a "fit-and-forget" solution by eliminating the moving parts found in traditional turbine or rotary meters.
Available through
| Feature | Details |
| Nominal Pipe Size | DN 50 (2") to DN 150 (6") |
| Measured Variables | Volume (Actual & Standard), Volumetric flow, Gas velocity |
| Installation Requirement | 0D (Zero straight pipe) – No flow straighteners needed |
| Power Supply | 5+ year battery life or intrinsically safe mains power |
| Safety Features | Overload-proof design, i-diagnostics™ self-monitoring |
| Maintenance | Rapid-exchange cartridge system (Swap in <15 mins) |
Eliminate Mechanical Failures: With no bearings or gears to wear out, the FLOWSIC500 maintains long-term stability and avoids the sudden blockages common in rotary meters.
Reduce Installation Costs: Save up to 50% on piping costs. Its immunity to flow disturbances means you can install it directly after an elbow or T-piece.
Integrated Intelligence: Built-in i-diagnostics™ continuously monitor the meter's health, alerting you to potential issues before they affect billing accuracy.
Simplified Calibration: The exchangeable cartridge allows you to replace the measuring unit on-site without removing the entire meter body from the pipeline.
Hanyu Logistics Support: We provide compliant technical selection and rapid global delivery, ensuring your municipal or industrial gas project stays on schedule.
The Scenario: A regional gas supplier struggled with failing turbine meters in a cramped station. Space constraints made adding the required 10D straight piping impossible for traditional technology.
The Hanyu Solution: We supplied the FLOWSIC500 with integrated EVC.
The Result: The client eliminated the need for costly piping modifications.
Impact: The integrated volume correction simplified the billing process, and the battery-powered backup ensured 100% data availability during a local power grid outage.
Q1: Can the FLOWSIC500 replace any standard turbine meter?
A: Yes. The FLOWSIC500 is designed with standard flange-to-flange dimensions, making it a direct "drop-in" replacement for most common turbine and rotary meters.
Q2: How does the "zero straight pipe" feature work?
A: SICK’s patented ultrasonic sensor arrangement is insensitive to flow turbulence. This allows the meter to maintain custody-transfer accuracy even when installed directly adjacent to pipe bends or regulators.
Q3: Is my business data safe when requesting a quote from Hanyu Zhilian?
A: Absolutely. Per our Privacy Policy, all business contact information (Name, Email, Company) provided via
đĄ System Integration Tip:
For maximum billing accuracy and MID/OIML compliance, the FLOWSIC series is ideally paired with the [SICK Flow-X High-Precision Flow Computer]. To ensure stable pressure compensation for fiscal measurement, we also recommend integrating the [Rosemount 3051S Pressure Transmitter] as part of our high-end integrated solutions.
