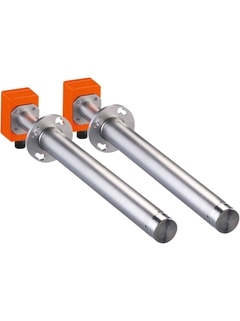

The FLOWSIC100 series is specifically engineered for continuous emission monitoring in the most demanding industrial environments—from cement kilns and steel mills to chemical processing plants. When measurements are required in ducts with extreme dust concentrations or aggressive, high-temperature gases, the FLOWSIC100 delivers reliable data where traditional technologies fail.
Available via
| Feature | Technical Data |
| Measured Variables | Volumetric flow (Actual & Standard), Gas velocity, Temp, Sound velocity |
| Velocity Range | 0 ... ± 40 m/s (Bidirectional measurement capability) |
| Max Temperature | Up to 260 °C (Standard) / Up to 450 °C (AC cooled version) |
| Transducer Material | Titanium (Superior corrosion resistance for aggressive stack gases) |
| Installation Types | Cross-duct (Standard/High-power) or Single-sided Probe (PR) |
| Self-Check | Automated zero and span point checks according to regulatory requirements |
Minimal Maintenance: Unlike Pitot tubes that frequently clog in dusty environments, the FLOWSIC100 has no moving parts and no small holes to clean.
Extreme Dust Tolerance: Integrated air purging systems prevent sticky or wet dust from accumulating on the sensors, ensuring 24/7 uptime.
Representative Accuracy: While Pitot tubes perform point measurements, the FLOWSIC100 measures across the entire duct diameter, providing a much more accurate representation of total stack flow.
Advanced Diagnostics: Built-in self-monitoring warns operators of potential issues before they lead to data loss, significantly reducing the risk of non-compliance penalties.
Hanyu Expert Selection: We provide compliant technical selection and rapid international delivery, backed by our expertise in complex CEMS projects.
The Challenge: A cement plant struggled with manual cleaning of flow sensors in a large-diameter stack filled with abrasive dust at 300 °C.
The Hanyu Solution: We supplied and configured the FLOWSIC100 AC version with an automated purging system.
The Result: Stable, high-precision readings without manual intervention.
The Impact: Maintenance intervals were extended from weeks to months, and the plant now maintains perfect environmental compliance records without costly shutdowns.
Q1: Can the FLOWSIC100 be used in highly corrosive "wet" stacks?
A: Yes. The FLOWSIC100 features titanium transducers as standard, providing excellent resistance to corrosion. For highly aggressive environments, specialized material coatings are available.
Q2: What is the benefit of the "AC" version?
A: The AC (Air Cooled) version uses an internal cooling system to protect the electronics and transducers from extreme stack heat, allowing for continuous operation in gases up to 450 °C.
Q3: How do I integrate this with my billing and reporting system?
A: For maximum billing accuracy and regulatory compliance, this meter is ideally paired with the [SICK Flow-X High-Precision Flow Computer]. For real-time pressure monitoring, we also provide the [Rosemount 3051S Pressure Transmitter] as part of our integrated measurement solutions.
Q4: Is my project data secure when I request a quote?
A: Absolutely. Per our Privacy Policy, all business data shared via
