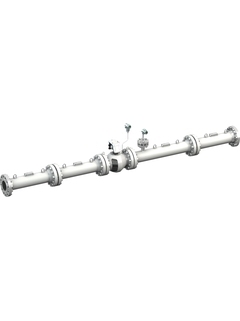

The FLOWRUN flow metering system is a premier, industry-standard solution designed for the most demanding fiscal measurement tasks. By seamlessly integrating world-class components—including the FLOWSIC600-XT ultrasonic meter and the Flow-X flow computer—into a single, pre-engineered modular package, FLOWRUN eliminates the high costs and risks associated with custom system design.
Available via
| Component | Technology / Range |
| Core Flowmeter | FLOWSIC600-XT (Highest Precision Ultrasonic) |
| Flow Computer | Flow-X Series (MID/OIML Certified) |
| Nominal Sizes | DN 50 to DN 1200 (2" to 48") |
| Pressure Ratings | ASME Class 150 up to Class 2500 |
| Measurement Uncertainty | ≤ 0.1% (Certified with high-pressure calibration) |
| Integrated Scope | Metering run piping, P&T transmitters, Flow-X panel, and Flow-correction |
Single-Source Responsibility: Eliminate the "blame game" between vendors. With FLOWRUN, the flowmeter, computer, and piping are guaranteed to work in perfect harmony.
Reduced Execution Effort: Being pre-assembled and modular, FLOWRUN drastically cuts on-site engineering and piping costs, allowing for rapid deployment.
Optimized Total Uncertainty: While sourcing components separately makes it difficult to calculate the total error budget, FLOWRUN is pre-certified to meet strict ISO/fiscal standards for the entire system.
Seamless Digital Data Flow: The Flow-X integration is pre-configured for the FLOWSIC600-XT, ensuring that digital diagnostics and fiscal data are mapped correctly from day one.
Hanyu Expertise: We specialize in the logistics and technical selection for complex metering skids, ensuring your regional gas station projects meet international standards.
The Challenge: A regional energy provider required a Class 600 high-pressure custody transfer station. They struggled with coordinating three different vendors for the flowmeter, computer, and piping, leading to a 3-month project delay.
The Hanyu Solution: The provider switched to the FLOWRUN integrated system from
The Result: We delivered a fully pre-configured, modular metering run.
The Impact: Commissioning time was reduced by 50%. The final system achieved a verified uncertainty of 0.09%, significantly exceeding the fiscal requirements and securing the provider's revenue stream.
Q1: Can FLOWRUN be customized to local regional standards?
A: Yes. While the system is built to international ISO standards, we can adapt the piping materials, pressure ratings, and flow computer algorithms (AGA, GOST, ISO) to meet specific local regulatory requirements.
Q2: What is the typical lead time for a modular FLOWRUN system?
A: Because FLOWRUN utilizes standardized modular designs, lead times are significantly shorter than custom-built "one-off" metering skids. Contact us at
Q3: How does this system handle pressure and temperature compensation?
A: The FLOWRUN system includes high-precision P&T instrumentation [Rosemount 3051S Pressure Transmitter] which is digitally integrated into the Flow-X computer for real-time, high-accuracy volume conversion.
Q4: Is my project data handled securely?
A: Absolutely. At Hanyu Zhilian, all technical inquiries and project details are protected under our Privacy Policy. Data is used exclusively for technical consulting and order fulfillment.
