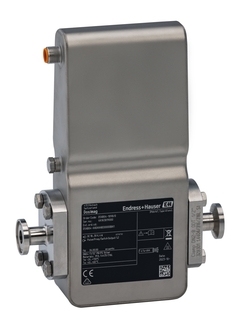

Maximize Filling Efficiency with the Dosimag Ultra-Compact Magmeter
The Dosimag is specifically engineered for high-speed bottling and batching applications where space is at a premium and hygiene is non-negotiable. Whether you are dosing conductive liquids in a brewery or filling syringes in a pharmaceutical lab, the Dosimag provides the highest repeatability and integrated batching functionality to ensure every drop counts.
| Feature | Specification |
| Measuring Principle | Electromagnetic (Inductive) |
| Max. Error | ±0.25 % o.r. (1 to 4 m/s) |
| Size Range | DN 4 to 25 (1/8 to 1") |
| Liner Material | PFA (FDA compliant) |
| Process Temperature | Up to +150 °C (+302 °F) with Viton seals |
| Communication | IO-Link, Modbus RS485, Pulse/Frequency |
| Approvals | 3-A, EHEDG, FCM, cGMP, ATEX |
Unlike standard industrial magmeters, Dosimag is a specialized tool for OEMs and Skid Builders.
Integrated Batching: Features "Dynamic Drip Correction" via Modbus RTU, reducing waste in high-speed filling.
Digital Ready: Equipped with IO-Link for real-time diagnostics and predictive maintenance—perfect for Industry 4.0.
Maintenance-Free: No moving parts and a fully-welded stainless steel housing (316L) ensure long-term reliability in CIP/SIP environments.
The Challenge: A dairy bottling plant needed to reduce overfill waste on a 12-head rotary filler.
The Solution: By installing Dosimag sensors with IO-Link, the plant achieved real-time compensation for foam and temperature changes.
The Result: 15% reduction in product loss and 20% faster commissioning time due to the compact plug-and-play wiring.
