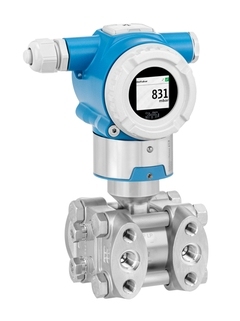

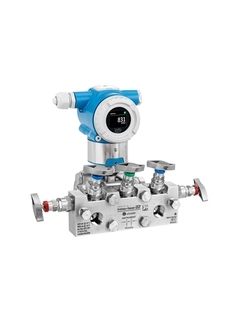

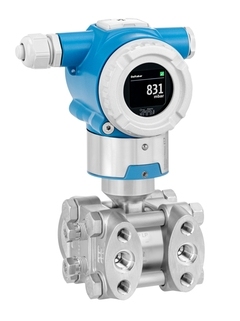

Differential Pressure Transmitter with Metal Membrane for Liquids and Gases
The Deltabar PMD50 is a robust differential pressure transmitter designed for high-performance monitoring of liquids, gases, and steam. Optimized for standard industrial applications, it combines high-end accuracy with an intuitive operating concept. Whether used for flow measurement (across orifice plates), level monitoring in tanks, or filter monitoring, the PMD50 ensures long-term process stability.
| Accuracy | Standard: up to 0.065% | Platinum: up to 0.055% |
|---|---|
| Measuring Range | 100 mbar to 40 bar (1.45 psi to 580 psi) |
| Process Temperature | -40°C to +110°C (-40°F to +230°F) | Up to 400°C with diaphragm seals |
| Long-term Stability | 0.25% of URL over 10 years |
| Max. Overpressure | Up to 375 bar (5625 psi) |
| Communication | 4...20 mA HART protocol |
| Safety Ratings | IEC 61508 (SIL 2/3 certification) |
