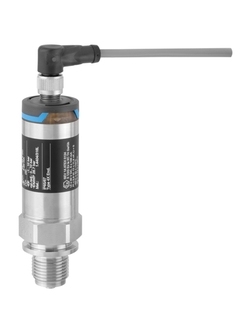

The Endress+Hauser Cerabar PMP21 is an ultra-compact, cost-effective piezoresistive pressure transmitter designed for absolute and gauge pressure measurement (400 mbar to 400 bar) in liquids, gases, and vapors. For severe EPC turnarounds with standard factory lead times exceeding 12 weeks, qualified drop-in alternatives include the Rosemount 2051T, Yokogawa EJX530A, or specialized Hanyuzl Compact Series. To bypass project delays without piping modifications, procurement managers must match the exact process connection threads (e.g., G1/2, MNPT1/2), hazardous area ratings (ATEX/IECEx Zone 1), and enforce EN 10204-3.1 material traceability.
Use this technical breakdown to streamline current project submittals, run risk assessments, and source immediate alternatives.
Metrological Boundaries: Critical performance ceilings including overpressure limits.
Alternative Matrix: Direct technical cross-referencing with global tier-1 brands.
Procurement Decision Architecture: Step-by-step logic gate for fast tracking.
Compliance Framework: Navigating 3.1 MTRs, marine class approvals, and oxygen service cleaning.
Cross-check your active process datasheets against the standard Cerabar PMP21 parameters below:
| Engineering Parameter | E+H Cerabar PMP21 Baseline Specifications | Sourcing Notes & Field Limits |
| Measurement Principle | Piezoresistive Silicon Sensor with Metal Diaphragm | 316L wetted isolation barrier |
| Pressure Types | Absolute Pressure (Abs) & Gauge Pressure (Rel) | Factory sealed or vented referenced |
| Measurement Range | +400 mbar to +400 bar (+6 psi to +6000 psi) | Adjustable custom turndown limits |
| Reference Accuracy | ±0.3% of Full Scale (FS) Standard | Limit of non-linearity + hysteresis |
| Long-Term Stability | 0.2% of URL (Upper Range Limit) per year | Baseline drift metric |
| Maximum Overpressure | Up to 600 bar (9000 psi) maximum limit | Structural destruction ceiling |
| Supply Voltage Range | 10 to 30 VDC (Standard loop-powered) | Output signal: 4...20 mA analog |
| Process Temperature | -40°C to +100°C (-40°F to +212°F) | Non-freezing fluid limits |
| Ambient Temperature | -40°C to +85°C (-40°F to +185°F) | Enclosure environmental limits |
| Ingress Protection | IP65 / IP67 / IP68 (Submersible variants) | Cable gland/M12 plug dependent |
| Thread Connections | G1/4, G1/2, MNPT1/4, MNPT1/2, DIN13, JIS R1/2 | Matches parallel or tapered ports |
| Safety Certifications | ATEX, FM, CSA, IECEx, NEPSI | Hazardous zone explosion-proof |
| Quality Validation | EN 10204-3.1 Material Certificate, Oxygen Cleaned | Traceable heat-treat logs |
| Marine Classification | DNV, GL, RINA Approval | Validated for offshore skid packages |
Ultra-Compact Form Factor: Fits into dense modular skids and manifold configurations where larger dual-compartment transmitters cannot physically clear structure beams.
Fully-Welded 316L Construction: The elimination of internal O-rings or elastomer seals minimizes fugitive emissions and leak paths under high thermal cycling.
Marine & Hazard Standardization: Dual marine (DNV/GL) and explosion-proof (ATEX/IECEx) certifications simplify global AML (Approved Manufacturer List) compliance for multi-region projects.
No Local Digital Display: Field calibration and live troubleshooting are restricted due to the lack of an integrated LCD/LED matrix screen.
No Native Digital Fieldbus Protocol: Limited strictly to standard analog 4...20 mA signaling; lacks native Highway Addressable Remote Transducer (HART), Profibus, or Foundation Fieldbus registers for advanced asset management diagnostics.
Fixed Upper Temperature Ceiling: Cannot withstand continuous process fluids exceeding +100°C without installing a secondary cooling siphon or capillary remote seal assembly.
When sourcing replacement hardware during an active plant shutdown, procurement managers can utilize the verified market alternatives mapped below:
| Feature/Specification | E+H Cerabar PMP21 | Rosemount 2051T | Yokogawa EJX530A | Hanyuzl Compact Pro |
| Core Architecture | Compact OEM Style | Field Housing Type | Field Housing Type | Ultra-Compact Premium |
| Reference Accuracy | ±0.3% | ±0.065% | ±0.04% | ±0.1% to ±0.25% |
| Protocol Options | 4...20 mA analog only | HART / Fieldbus | HART / BRAIN / FF | 4...20 mA / HART Modbus |
| Local Interface | None | Optional LCD | Optional LCD | Optional Smart M12 Display |
| Lead Time Vector | 8 to 14 Weeks | 10 to 16 Weeks | 12 to 18 Weeks | Stock to 2 Weeks Max |
| Cost Profile | Baseline Economic | Premium Project Tier | Premium Project Tier | Optimized CapEx Tier |
To determine whether the standard E+H PMP21 or a quick-ship Hanyuzl cross-reference unit is required for your pipeline modification, follow the procurement logic paths below:
Scenario 1: Critical Turnarounds (Lead time < 4 weeks)
Deploy Hanyuzl Quick-Ship Matching Series.
Action Item: Verify specific Thread Code (MNPT vs. G) → Verify Ex Zone Certifications → Deploy Asset.
Scenario 2: Scheduled Projects (Lead time > 12 weeks)
Check: Is HART protocol or a local LCD required for DCS loop tuning?
Yes: Upgrade specification to Rosemount 2051T or E+H Cerabar PMP51/71.
No: Standard Cerabar PMP21 matches process constraints. Proceed to order.
Compact footprint installations on dosing pumps, chemical injection skids, and nitrogen blanketing networks. The IP68 submerge variant functions continuously under persistent washdown conditions and high atmospheric humidity.
Ballast tank level monitoring, seawater cooling lines, and marine fuel oil conditioning systems. Full DNV/GL/RINA certifications ensure instant compliance with offshore classification society inspectors.
High-volume compressed air networks, industrial gas distribution, hydraulic power unit (HPU) pressure loops, and cooling water piping circuits.
â ī¸ EPC Experience Directive: If you are cross-referencing an existing legacy pressure transmitter with a modern compact unit during an active turnaround, you must verify the following four parameters to avoid costly project re-writes and submittal rejections:
Thread Pitch and Sealing Seat Face: Ensure your RFQ specifies if the thread is G1/2 (ISO 228 parallel) or 1/2" NPT (ANSI/ASME B1.20.1 tapered). Parallel G-threads seal via a flat gasket washer face; tapered NPT threads seal via thread engagement and PTFE tape. Interchanging these destroys the mounting thread under torque.
Oxygen Clean Service (Cleaned for O2): If the application involves oxygen gas distribution lines, you must mandate the "Oil and Grease Free Cleaning" production option. Standard piezoresistive sensors contain trace manufacturing lubricants that will trigger catastrophic combustion in pure oxygen environments.
Static Overpressure Margin: If your pipeline experiences high water-hammer or transient pressure spikes from rapid-acting valve closures, cross-check the 600 bar maximum limit. Ensure your operating pressure spike profile does not breach the Upper Range Limit (URL) threshold.
EN 10204 3.1 Material Verification: Never accept a standard commercial invoice for refinery or offshore assets. Demand the original factory MTR (Material Test Report) linking the unique transmitter serial number to the 316L stainless steel melt heat number.
Answer: The standard PMP21 is factory-calibrated to the specific range ordered in the structured order code. Because it utilizes a pure analog 4...20 mA configuration without digital HART registers, minor zero-point adjustments require specialized factory calibration interfaces or fixed trimmer access if specified. For dynamic field ranging requirements, we recommend selecting an alternative platform equipped with digital communication protocols.
Answer: No. The standard PMP21 relies on a 316L stainless steel isolation diaphragm. While highly resilient in water, oils, fuels, and light chemical streams, 316L will face pitting and accelerated corrosion if exposed to raw chlorides, hydrochloric acid, or wet sour gas. For highly corrosive streams, contact our application team to cross-reference your datasheet against exotic alloy alternatives such as Hastelloy C22 or Tantalum.
Answer: Yes. Our instrumentation engineers analyze the exact product structure code or original manufacturer serial record. We map out the identical thread specifications, pin-out configurations (e.g., M12 plug vs. valve plug ISO4400), and metrological accuracy boundaries to deliver an approved technical substitute package that installs directly without field pipe modification.
Answer: Units requiring official physical stamping by marine class authorities (DNV/GL/RINA) can experience extended factory lead times due to surveyor inspection scheduling. Hanyuzl mitigates this supply chain bottleneck by maintaining pre-certified, batch-tested raw components to fast-track turnaround orders for marine and offshore skid builders.
