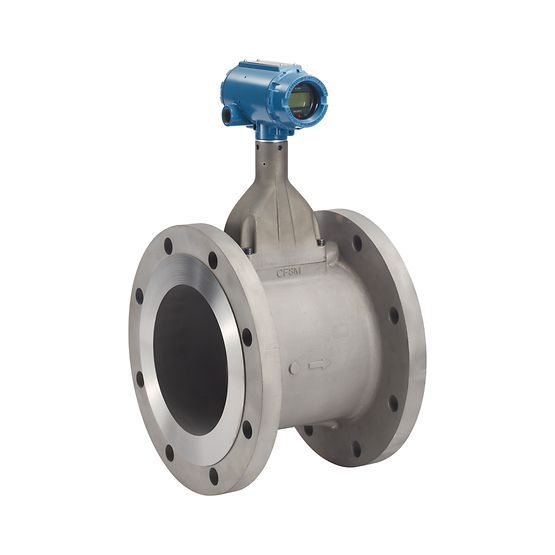

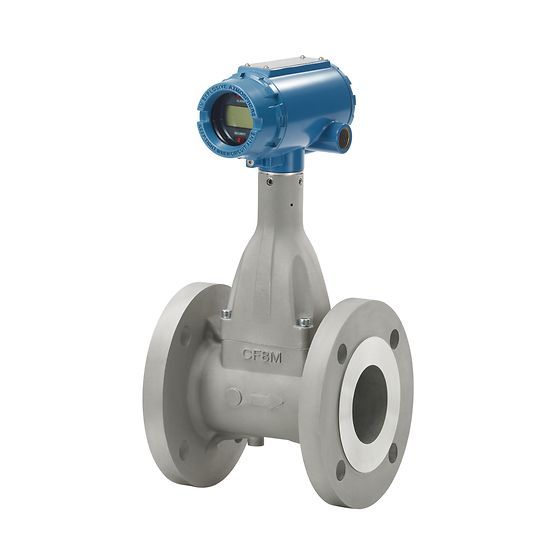

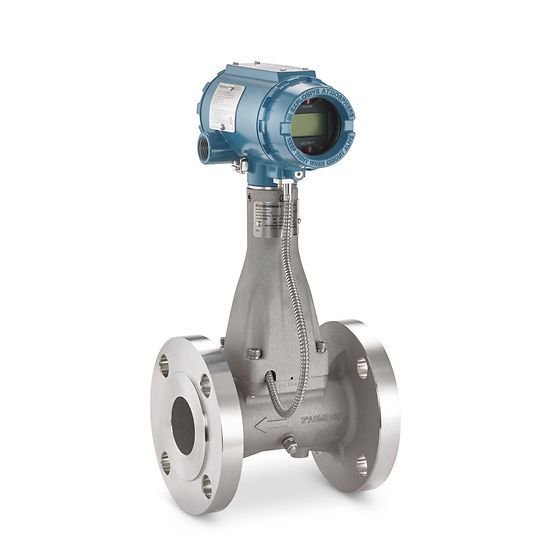

Emerson Rosemount 8600 Utility Vortex Flow Meters

Product Details

Description

• Ensure reliability and cut costs with no moving parts to repair or maintain
• Eliminate impulse lines and plugging issues with inline technology
• Simplify installation with no impulse lines or field calibration or zeroing required
• Cover a broad span of flow rates with wide rangeability
• Electronics verification enables simplified troubleshooting
• Perform easy maintenance with replaceable sensors
• Remote mount electronics offered for easy access

Specifications

Flow Meter Accuracy

± 0.75% of volumetric rate for liquids
± 1% of volumetric rate for gas and steam
± 2% of rate for mass flow on steam using 8600 MultiVariable (MTA option)

Turndown

30:1

Output

4-20 mA with HART® 5
4-20 mA with HART® 5 and scalable pulse output

Wetted Material

Stainless Steel – CF3M & CF8M

Flange Options

ANSI Class 150 and 300
DIN PN 10 and PN 40

Process Temperature Limits

-58°F to 482°F (-50°C to 250°C)

Temperature Sensor Range Using 8600 MultiVariable (MTA option)

-40 to 800°F (-40 to 427°C)

Line Size

1 to 8-in; 25 to 200 mm
