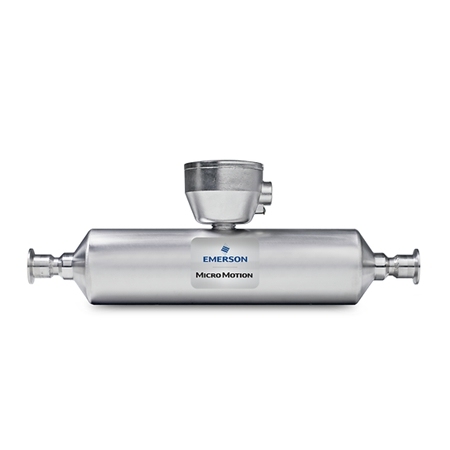

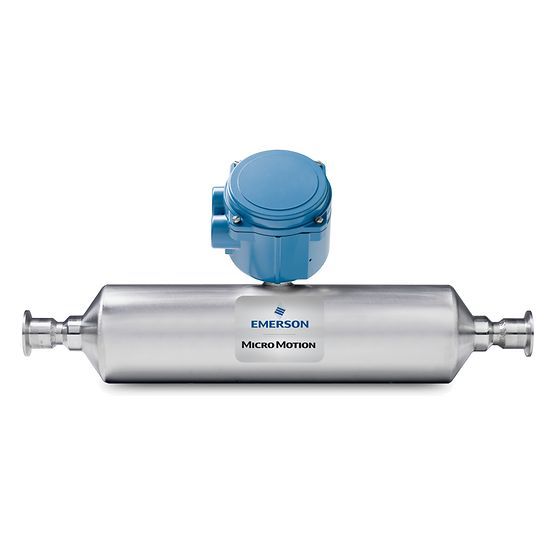

The Micro Motion T150T is a high-performance 1-1/2 inch (DN40) Coriolis meter featuring a unique single straight-tube design. Crafted from Titanium Grade 9, the T150T is engineered for fluids that are difficult to measure with curved sensors. Its 32 Ra surface finish and plug-resistant flow path make it the industry choice for hygienic processes, high-viscosity liquids, and abrasive slurries where drainability and easy cleaning (CIP/SIP) are critical.
Straight-Tube Performance: The single-path design minimizes pressure drop and prevents clogging, making it ideal for self-draining and piggable systems.
Titanium Grade 9 Construction: Provides superior corrosion resistance and a high strength-to-weight ratio, ensuring durability in aggressive process conditions.
Hygienic Excellence: Fully authorized by 3-A, EHEDG, and USDA. Designed to meet ASME BPE standards for pharmaceutical and food grade applications.
Multi-Variable Measurement: Simultaneously capture mass flow, volume flow, density, and temperature with a single, robust device.
Easy Maintenance: The self-draining design saves time during Clean-in-Place (CIP) and Steam-in-Place (SIP) cycles.
Flexible Installation: Highly robust design requires no straight pipe runs or flow conditioning, simplifying installation in tight spaces.
| Feature | Specification Details |
| Line Size | 1-1/2 Inch (DN40) |
| Wetted Material | Titanium Grade 9 |
| Surface Finish | 32 Ra (0.8 μm) |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Liquid Density Accuracy | ±0.002 g/cm³ (±2.0 kg/m³) |
| Max Working Pressure | 1,450 psig (100 barg) |
| Gas Mass Flow Accuracy | ±0.50% of rate |
| Hygienic Certifications | 3-A, EHEDG, USDA, ASME BPE |
Q1: Why choose Titanium Grade 9 for the T150T?
A1: Titanium Grade 9 offers exceptional resistance to many corrosive fluids where 316L Stainless Steel might fail. Its durability makes the T150T a long-lasting solution for chemical and pharmaceutical applications.
Q2: Does the T150T support Smart Meter Verification?
A2: Yes, when paired with compatible transmitters like the 5700, the T150T supports Smart Meter Verification (SMV), allowing you to check the meter's health while it remains in-line and in-process.
Q3: Can this meter measure fluids with solids?
A3: Absolutely. The straight-tube, plug-resistant flow path is specifically designed to handle slurries and fluids containing suspended solids that would typically accumulate in bent-tube meters.
Q4: Is special piping required before the meter?
A4: No. Micro Motion Coriolis technology is immune to flow profile disturbances, so you do not need straight runs or flow conditioners upstream or downstream of the T150T.
