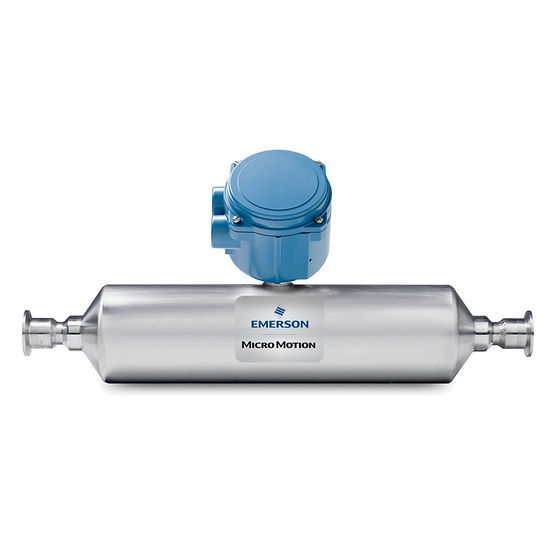

The Micro Motion T150F (DN40) is a 1 1/2-inch Coriolis meter designed to solve the most difficult fluid measurement challenges. Its unique single straight-tube architecture in Titanium Grade 9 provides a totally unobstructed, plug-resistant flow path. Polished to an elite 15 Ra (0.4 μm) finish, this sensor is purpose-built for industries where process purity, minimal shear, and easy cleanability are non-negotiable.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1 1/2 Inch (DN40) |
| Wetted Material | Titanium Grade 9 (Single Straight Tube) |
| Surface Finish | 15 Ra (0.4 μm) (Electropolished) |
| Hygienic Certifications | 3-A, EHEDG, USDA, ASME BPE |
| Liquid Mass Flow Accuracy | ±0.15% of rate |
| Density Accuracy (Liquid) | ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, UL |
Unobstructed Straight Flow Path: The T-Series single tube design eliminates the pressure drop and potential for clogging found in dual-curved tube meters. This makes it the ideal solution for large-scale batching of high-viscosity or fiber-containing fluids.
Extreme Purity (15 Ra Finish): The ultra-smooth 15 Ra finish exceeds standard hygienic requirements, preventing protein or particle adhesion and ensuring a 100% sterile environment during CIP and SIP cycles.
Gentle on Shear-Sensitive Fluids: By avoiding the bends of traditional Coriolis meters, the T150F minimizes fluid agitation, preserving the molecular structure of sensitive products like dairy, juices, and specialty chemicals.
Titanium Grade 9 Resilience: Titanium offers exceptional resistance to chlorides, saline solutions, and organic acids, significantly extending the sensor’s life compared to 316L stainless steel in aggressive media.
Compact, No Straight-Run Installation: Save space in your skid or facility. The T150F requires zero straight pipe runs, allowing for flexible installation without losing measurement performance.
Flexible Electronics: Pairs with the Emerson 5700 transmitter for advanced signal processing or the 2400 for compact system integration.
Digital Infrastructure: Full support for HART, Modbus, PROFINET, and EtherNet/IP.
Integrity Assurance: Built-in Smart Meter Verification (SMV) monitors the tube health and electronics in-process, providing a validated audit trail for regulatory compliance.
The Challenge: A manufacturer of high-purity polymers needed to measure flow in a DN40 line. Traditional meters were shearing the polymer chains and causing "dead spots" where materials would solidify, leading to expensive downtime.
The Hanyu Solution: The customer installed the Micro Motion T150F from
The Result: The straight-tube titanium path eliminated the "dead spots" and maintained the polymer's integrity. The 15 Ra finish ensured that the line was perfectly cleaned between batches.
The Impact: Product yield increased by 15%, and cleaning time was reduced by 25%, resulting in a full ROI within the first year of operation.
Q: When is the T150F (15 Ra) better than the T150T (32 Ra)?
A: If you are in the pharmaceutical or high-end biotech industry, the 15 Ra (F-Series) is the required standard for sterile processing to minimize microbial growth. The 32 Ra (T-Series) is typically used for general food/beverage or corrosive industrial applications.
Q: Does a straight tube design sacrifice accuracy?
A: Not with Micro Motion technology. The T150F maintains a precise ±0.15% liquid mass flow accuracy, which is more than sufficient for most hygienic batching and transfer applications.
Q: Can it measure density as well as flow?
A: Yes. Like all ELITE and F-Series meters, the T150F provides direct, in-line measurement of mass flow, volume flow, density, and temperature simultaneously.
Q4: How does Hanyu Zhilian support these specialized Titanium sensors?
A: We provide 100% original factory units with full documentation, including Material Traceability Reports (MTRs), 3-A/EHEDG certifications, and original calibration certificates. All project data is confidential per our Privacy Policy.
