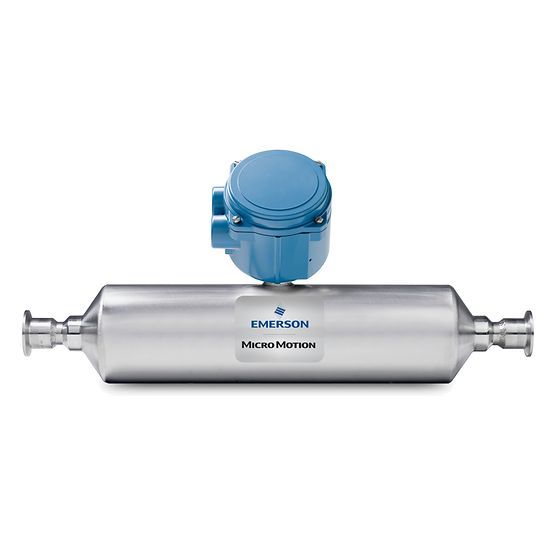

The Micro Motion T100T is a premier 1-inch (DN25) Coriolis flow and density meter featuring a unique single straight-tube design. Crafted from Titanium Grade 9, this sensor is engineered for applications that require a plug-resistant flow path and superior cleanability. With its 32 Ra surface finish, the T100T is the ideal choice for hygienic processes where measurement reliability and product integrity are paramount.
Straight-Tube Advantage: The straight flow path is inherently plug-resistant and easily drainable, making it perfect for slurries and high-viscosity fluids.
Titanium Construction: Grade 9 Titanium provides excellent chemical compatibility and durability for a wide range of process fluids.
Hygienic Excellence: Meets the strictest sanitary standards with 3-A, EHEDG, and USDA certifications. It is fully compatible with CIP (Clean-in-Place) and SIP (Steam-in-Place) cycles.
Multi-Variable Measurement: Simultaneously measure mass flow, density, concentration, volume flow, and temperature from a single device.
Simplified Installation: A highly robust design that requires no straight pipe runs or flow conditioning, significantly reducing installation costs.
Global Certifications: Fully certified for hazardous areas including ATEX, CSA (Class 1 Div 1 & 2), and UL.
| Feature | Specification Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | Titanium Grade 9 |
| Surface Finish | 32 Ra (0.8 μm) |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Max Working Pressure | 1,450 psig (100 barg) |
| Gas Flow Accuracy | ±0.50% of rate |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
Q1: Why choose Titanium Grade 9 for the T100T?
A: Titanium Grade 9 offers a superior strength-to-weight ratio and exceptional resistance to many corrosive environments, particularly in applications where stainless steel is insufficient.
Q2: Can the T100T handle solids in the fluid?
A: Yes. The straight-tube design is specifically intended to handle fluids with solids or slurries that might otherwise collect or clog in conventional bent-tube Coriolis meters.
Q3: Does this meter require flow conditioning?
A: No. Like most Micro Motion Coriolis meters, the T100T is not affected by flow profile disturbances, so it does not require straight pipe runs upstream or downstream.
