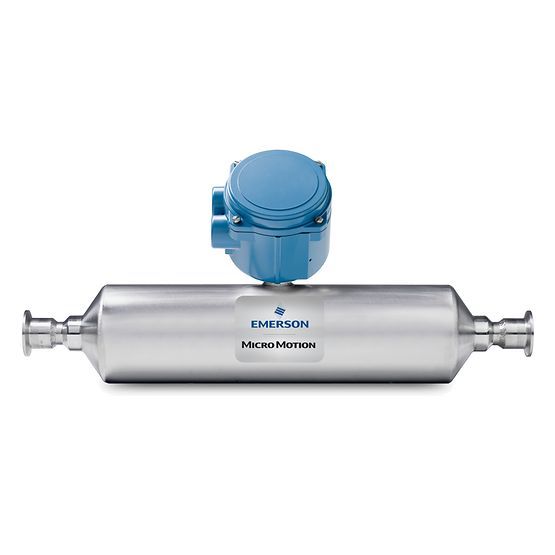

The Micro Motion T100F represents the pinnacle of hygienic measurement technology. This 1-inch (DN25) Coriolis meter features a single straight-tube design made of Titanium Grade 9. What sets the T100F apart is its 15 Ra (0.4 μm) surface finish, providing an ultra-smooth, plug-resistant flow path. It is engineered for the pharmaceutical, biotech, and high-end food industries where sterility and easy cleaning are non-negotiable.
Ultra-Smooth 15 Ra Finish: The superior surface polish minimizes bacterial attachment and ensures the highest level of cleanability for sensitive batches.
Straight-Tube Advantage: The single straight flow path is inherently plug-resistant and fully drainable, ideal for fluids that tend to clog curved sensors.
Maximum Hygienic Compliance: Fully certified by 3-A, EHEDG, USDA, and ASME BPE standards for use in SIP/CIP environments.
Titanium Durability: Grade 9 Titanium construction offers exceptional chemical compatibility and a superior strength-to-weight ratio.
Multi-Variable Precision: Direct in-line measurement of mass flow, density, temperature, and concentration from a single robust device.
Streamlined Installation: The robust design eliminates the need for straight pipe runs, flow conditioners, or complex mounting.
| Feature | Specification Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | Titanium Grade 9 |
| Surface Finish | 15 Ra (0.4 μm) |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Max Working Pressure | 1,450 psig (100 barg) |
| Certifications | 3-A, EHEDG, ASME BPE, ATEX, CSA |
| Temperature Range | Up to 302°F (150°C) |
Q1: What is the difference between the T100F and T100T models?
A1: The primary difference is the internal surface finish. The T100F features a 15 Ra (0.4 μm) polish, which is smoother than the 32 Ra finish of the T100T, making the T100F more suitable for high-purity pharmaceutical applications.
Q2: Is the T100F Titanium construction compatible with CIP/SIP?
A2: Absolutely. The Titanium Grade 9 construction and the straight-tube design are specifically optimized for Clean-in-Place (CIP) and Steam-in-Place (SIP) cycles, ensuring no residue is left behind.
Q3: Does the straight-tube design handle viscous fluids better than U-tube meters?
A3: Yes. The straight-tube flow path is less prone to pressure drops and plugging, making it superior for measuring honey, syrups, slurries, or pharmaceutical pastes.
Q4: Can the T100F measure gas flow accurately?
A4: Yes, it provides a mass flow accuracy of ±0.50% for gas applications, along with excellent repeatability (±0.05%).
