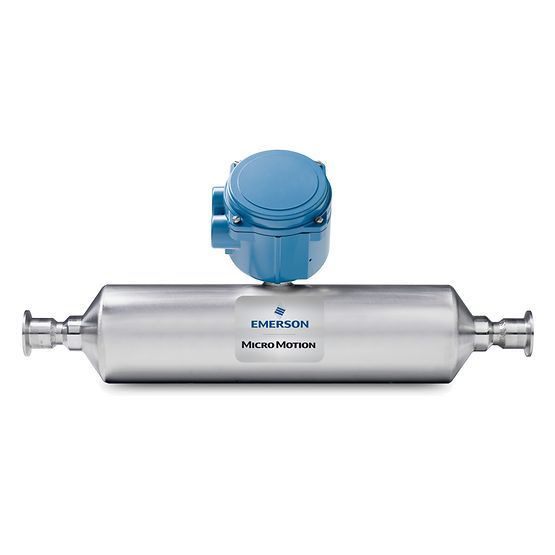

The Micro Motion T075T (DN20) is a 3/4-inch Coriolis meter that redefines performance for challenging fluid paths. Utilizing a single Titanium Grade 9 straight tube, it offers a plug-resistant, low-pressure-drop flow path that is unmatched by traditional curved-tube sensors. This design is specifically engineered for fluids that are sensitive to shear or tend to coat or clog standard meters.
Available through
| Feature | Performance Data |
| Nominal Line Size | 3/4 Inch (DN20) |
| Wetted Material | Titanium Grade 9 (Excellent Corrosion Resistance) |
| Tube Design | Single Straight Tube (Plug-Resistant) |
| Surface Finish | 32 Ra (Hygienic Grade) |
| Liquid Mass Flow Accuracy | ±0.15% of rate |
| Liquid Density Accuracy | ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Hygienic Certifications | 3-A, USDA, EHEDG, ASME BPE |
Obstruction-Free Flow Path: The single straight-tube design minimizes shear stress on delicate fluids (like polymers or proteins) and prevents the buildup of solids or slurries that typically settle in curved tubes.
Titanium Grade 9 Durability: Offers superior strength-to-weight ratio and exceptional resistance to chlorides and corrosive chemicals, ensuring a longer service life than stainless steel in aggressive media.
Simplified Cleaning (CIP/SIP): With no corners or crevices, the T075T is the easiest meter to Clean-in-Place (CIP) and Steam-in-Place (SIP). Its self-draining nature is critical for multi-product lines.
Robust "No Straight Run" Installation: Unlike ultrasonic or magnetic meters, the T075T’s robust design allows for installation in tight spaces without the need for upstream or downstream straight pipe runs.
Multivariable Measurement: Provides real-time, in-line measurement of mass flow, density, concentration, volume flow, and temperature from a single titanium device.
Universal Transmitter Compatibility: Works with the full range of Micro Motion transmitters (e.g., Emerson 5700, 2400) to meet any facility's digital architecture.
Industry Protocols: Supports HART, Modbus, PROFINET, and EtherNet/IP for seamless PLC/DCS communication.
Comprehensive Approvals: Fully certified for hazardous areas (CSA Class 1 Div 1 & 2, ATEX, IECEx) and ingress protection (IP66/67).
The Challenge: A specialty chemical company was struggling with frequent downtime in a 3/4-inch line due to a viscous, abrasive slurry that constantly clogged their curved-tube meters and eroded stainless steel components.
The Hanyu Solution: The plant replaced the failing units with the Micro Motion T075T from
The Result: The Titanium Grade 9 straight tube eliminated the clogging issues and resisted the abrasive wear. The ±0.15% accuracy remained stable over 18 months without recalibration.
The Impact: Maintenance costs dropped by 40%, and the facility successfully met EHEDG hygiene standards for their subsequent food-grade product runs using the same line.
Q: Why choose Titanium Grade 9 (T-Series) over Stainless Steel?
A: Titanium is preferred for its superior resistance to chlorides, high-velocity abrasion, and certain acids. Additionally, the straight-tube design is only available in the T-Series for specific line sizes like DN20.
Q: Is the T075T suitable for "Shear-Sensitive" fluids?
A: Yes. Because the fluid travels in a straight line without being forced through curves, the shear forces are significantly lower, preserving the molecular integrity of delicate fluids.
Q: Does the 32 Ra finish meet pharmaceutical standards?
A: Yes, the 32 Ra finish is ASME BPE compliant. For even more stringent requirements, highly polished 15 Ra options may also be available.
Q4: How does Hanyu Zhilian verify the authenticity of Titanium sensors?
A: We provide 100% original factory units with full documentation, including Material Traceability Reports (MTRs), original calibration certificates, and 3-A/EHEDG compliance papers. Your project details are kept strictly confidential.
