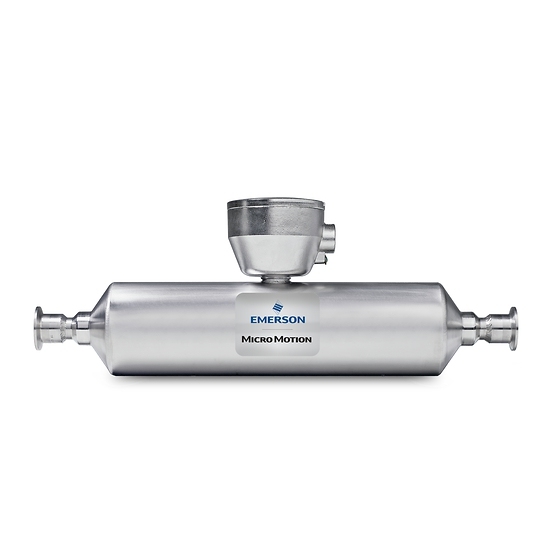

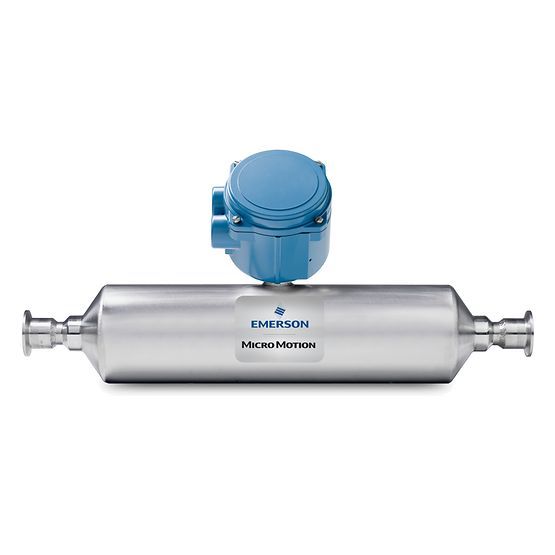

The Micro Motion T075F is a premium 3/4-inch (DN20) Coriolis meter featuring a unique single straight-tube design. Crafted from Titanium Grade 9, it offers exceptional chemical compatibility and structural integrity. With a superior 15 Ra (0.4 μm) electropolished finish, this meter is specifically engineered for hygienic industries—such as food, beverage, and life sciences—where process purity and easy drainage are non-negotiable.
Plug-Resistant Flow Path: The single straight-tube design minimizes pressure drop and prevents clogging, ideal for slurries and high-viscosity fluids.
Superior Surface Finish: Standard 15 Ra (0.4 μm) finish meets the most stringent ASME BPE and hygienic requirements.
Titanium Grade 9 Construction: Provides a high strength-to-weight ratio and excellent resistance to many corrosive process fluids.
Certified Hygienic Design: Fully authorized for 3-A and EHEDG compliance; designed for rapid CIP (Clean-in-Place) and SIP (Steam-in-Place).
Multivariable Measurement: Directly measure mass flow, density, temperature, and concentration with a single, highly reliable device.
Robust & Installation-Friendly: Immune to pipeline vibration and requires no straight pipe runs or flow conditioning, simplifying your skid design.
High Pressure Rating: Reliable operation at pressures up to 1,450 psig (100 barg).
| Feature | Specification Details |
| Line Size | 3/4 Inch (DN20) |
| Tube Design | Single Straight Tube |
| Wetted Material | Titanium Grade 9 |
| Surface Finish | 15 Ra (0.4 μm) - Electropolished |
| Liquid Mass Accuracy | ±0.15% of rate |
| Max Working Pressure | 1,450 psig (100 barg) |
| Hygienic Approvals | 3-A, EHEDG, ASME BPE, USDA |
Q: How does the straight-tube design benefit shear-sensitive fluids?
A: Unlike dual-bend meters, the straight-tube T075F has a very gentle flow path with minimal shear force, which protects the molecular integrity of sensitive products like dairy, polymers, or blood fractions.
Q: Can this meter handle abrasive slurries?
A: Yes. The straight-flow geometry reduces erosive wear compared to bent-tube meters, and the Titanium construction offers superior durability in many abrasive and corrosive environments.
Q: Is it easy to drain?
A: Absolutely. The T075F is designed for self-drainage when installed vertically, ensuring no product is trapped during batch change-overs or cleaning cycles.
