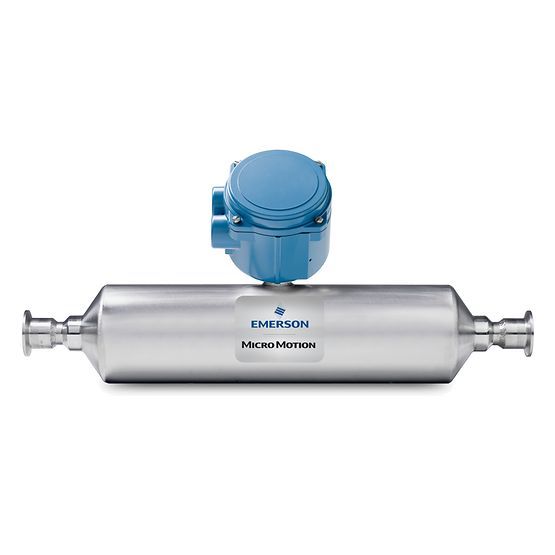

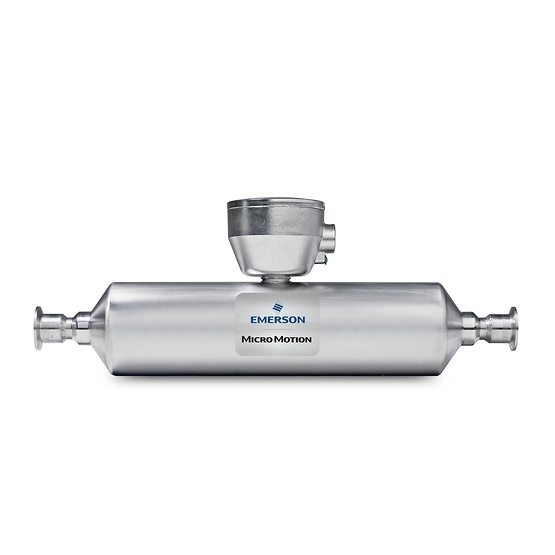

The Micro Motion T050T (DN15) is a 1/2-inch Coriolis meter that redefines performance for fluids that are difficult to measure with traditional curved-tube sensors. Featuring a single, straight-tube design made from Titanium Grade 9, the T050T provides a plug-resistant flow path that is inherently drainable and provides the lowest possible pressure drop.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Tube Design | Single Straight-Tube (Plug-Resistant) |
| Wetted Material | Titanium Grade 9 (High Corrosion Resistance) |
| Surface Finish | Standard 32 Ra (0.8 μm) (Optional to 15 Ra) |
| Mass Flow Accuracy (Liq) | ±0.15% of rate |
| Density Accuracy (Liq) | ±0.002 $g/cm^3$ (±2.0 $kg/m^3$) |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Hygienic Approvals | 3-A, EHEDG, USDA, ASME BPE |
Non-Clogging Straight Path: The single straight-tube geometry allows solids, entrained air, and viscous slurries to pass through without the risk of plugging. This design is also ideal for shear-sensitive fluids that can be damaged by the bends in curved meters.
Titanium Grade 9 Durability: Titanium provides exceptional resistance to a wide range of corrosive chemicals and chlorides, while offering the structural strength necessary for a stable, high-accuracy straight-tube measurement.
Hygienic and Drainable: Fully certified by 3-A, EHEDG, and USDA. The straight-through design eliminates dead spots where bacteria can collect, ensuring rapid and effective CIP (Clean-in-Place) and SIP (Steam-in-Place).
Low Pressure Drop: By avoiding the "U" or "S" bends of other Coriolis meters, the T050T maintains process hydraulic efficiency, reducing energy costs and pump requirements.
Direct Multivariable Measurement: Measures mass flow, density, concentration, volume flow, and temperature simultaneously from a single device—reducing the number of line penetrations and potential leak points.
Simplified Installation: The robust design is immune to most pipeline stresses and requires no straight pipe runs or flow conditioners, making it perfect for compact skid integration.
Comprehensive Connectivity: Pairs with a wide range of Emerson transmitters to support HART, Modbus, PROFINET, and EtherNet/IP.
Smart Meter Verification (SMV): Verify the structural integrity and calibration of your sensor in-process, without stopping the flow, ensuring audit-ready compliance.
Explosion-Proof Ratings: Carries global hazardous area approvals (ATEX, CSA, IECEx, NEPSI), allowing for safe deployment in volatile environments.
The Challenge: A pharmaceutical manufacturer needed to measure a 1/2-inch flow of a bioactive slurry that was prone to settling and clogging in standard flow meters. They also required strict EHEDG compliance.
The Hanyu Solution: The plant implemented the Micro Motion T050T from
The Result: The straight-tube design eliminated all clogging issues, and the Titanium construction ensured zero leaching or contamination of the product.
The Impact: Cleaning times were reduced by 30%, and the high-precision ±0.15% accuracy resulted in a 5% increase in batch yield.
Q: Is the T050T better for entrained air than curved meters?
A: Yes. Straight-tube meters like the T050T generally handle fluids with entrained air or gas bubbles more effectively than curved-tube meters, as the bubbles pass through the tube more uniformly.
Q: Does the Titanium tube require special handling during installation?
A: While Titanium is extremely durable, it should be installed using standard industrial best practices to ensure the sensor is not subjected to extreme mechanical torque. No special flow conditioning is required.
Q: Can I get a higher surface polish than 32 Ra?
A: Yes. We offer optional high-polish finishes up to 15 Ra (0.4 μm) for high-purity pharmaceutical or biotech applications requiring the smoothest possible flow path.
