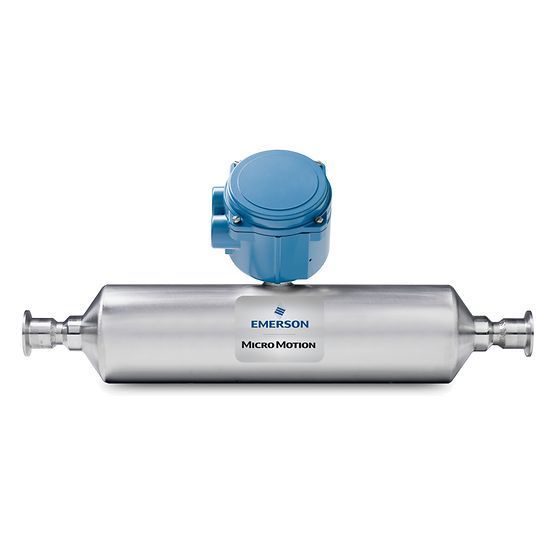

The Micro Motion T050F (DN15) is a 1/2-inch Coriolis meter that combines the mechanical advantages of a single straight-tube design with the extreme chemical resilience of Titanium Grade 9. Polished to an elite 15 Ra (0.4 μm) finish, this sensor provides a plug-resistant, low-shear flow path that meets the world's most stringent 3-A and EHEDG hygienic standards.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Wetted Material | Titanium Grade 9 (Superior Corrosion Resistance) |
| Tube Architecture | Single Straight Tube (Plug-Resistant) |
| Surface Finish | 15 Ra (0.4 μm) (Electropolished) |
| Hygienic Certifications | 3-A, EHEDG, USDA, ASME BPE |
| Liquid Mass Flow Accuracy | ±0.15% of rate |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, UL |
Zero-Entrapment Straight Path: The single straight-tube geometry allows for a clear, in-line flow that eliminates "dead zones." This is critical for fluids that tend to settle, coat, or clog curved-tube meters.
Preserve Fluid Integrity: Ideal for shear-sensitive products like blood fractions, vaccines, or delicate polymers. The T050F measures without the high-velocity turbulence or mechanical stress found in bent-tube designs.
Elite 15 Ra Hygienic Finish: The ultra-smooth surface finish exceeds standard sanitary requirements, facilitating faster CIP (Clean-in-Place) and SIP (Steam-in-Place) cycles while ensuring 100% sterile batching.
Titanium Grade 9 Durability: Offers unmatched resistance to chlorides and oxidizing acids, outperforming 316L stainless steel in both longevity and mechanical strength.
Effortless Installation: Unlike traditional flow technologies, the T050F is highly robust and requires no straight pipe runs. This allows for maximum flexibility in compact skid and plant layouts.
Multivariable Insight: Simultaneously measure mass flow, volume flow, density, concentration, and temperature with one compact DN15 device.
Transmitter Versatility: Fully compatible with Micro Motion’s range of transmitters (e.g., Emerson 5700, 2400) to support any digital plant architecture.
Real-Time Verification: Utilize Smart Meter Verification (SMV) to confirm sensor health and calibration in-line, providing a digital audit trail for regulatory compliance.
The Challenge: A biotech facility needed to dose a highly viscous and expensive nutrient into a fermenter. Standard curved-tube meters were causing "product hang-up" and were difficult to clean between batches.
The Hanyu Solution: The facility implemented the Micro Motion T050F from
The Result: The straight-tube titanium path allowed the nutrient to flow freely without entrapment. The 15 Ra finish ensured that the meter was perfectly sterile after every SIP cycle.
The Impact: Cleaning time was reduced by 30%, and the facility eliminated batch-to-batch contamination risks, significantly increasing overall production yield.
Q: When should I choose the T-Series (Straight Tube) over the F-Series (Curved)?
A: Choose the T-Series (T050F) if your fluid is shear-sensitive, contains solids that might clog a bend, or if your process requires the absolute easiest draining/cleaning path possible.
Q: Can the T050F handle gas measurement?
A: Yes. It provides repeatable and accurate gas mass flow measurement with a stable accuracy of ±0.50%.
Q: What is the benefit of Titanium Grade 9?
A: It is lighter and stronger than stainless steel while providing superior resistance to a wider range of corrosive chemicals, especially chlorides and saline solutions.
