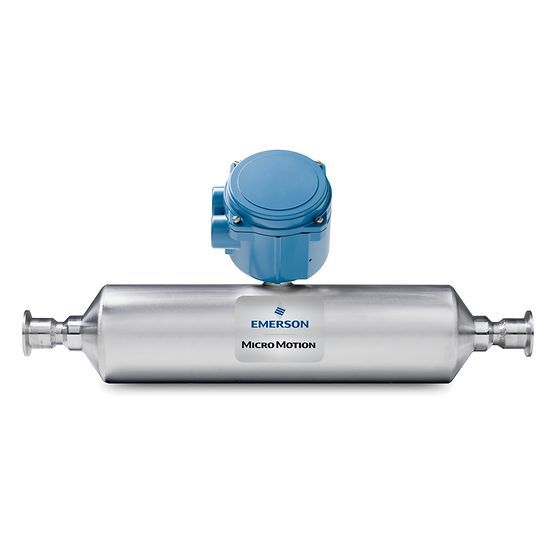

The Micro Motion T025T (DN6) is a 1/4-inch Coriolis meter that redefines measurement in challenging process lines. Unlike traditional curved-tube meters, the T025T utilizes a single, straight-tube design crafted from Titanium Grade 9. This unique geometry provides a plug-resistant flow path that is naturally drainable and incredibly easy to clean.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/4 Inch (DN6) |
| Tube Design | Single Straight-Tube (Non-Clogging) |
| Wetted Material | Titanium Grade 9 (Excellent Corrosion Resistance) |
| Surface Finish | Standard 32 Ra (0.8 μm) (Optional to 15 Ra) |
| Mass Flow Accuracy (Liq) | ±0.15% of rate |
| Density Accuracy (Liq) | ±0.002 $g/cm^3$ (±2.0 $kg/m^3$) |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Hygienic Standards | 3-A, EHEDG, USDA, ASME BPE Certified |
Plug-Resistant Straight Path: The single straight-tube geometry allows solids and shears-sensitive fluids to pass through without the risk of clogging or product degradation—ideal for slurries and Shear-sensitive liquids.
Titanium Grade 9 Construction: Offers superior corrosion resistance and a higher strength-to-weight ratio than stainless steel, making it compatible with a vast array of aggressive process fluids.
Hygienic Perfection: Fully authorized by 3-A, EHEDG, and USDA. Its straight-through design eliminates pockets where bacteria could grow, ensuring effortless CIP (Clean-in-Place) and SIP (Steam-in-Place) cycles.
Low Pressure Drop: The straight-tube design minimizes flow resistance, ensuring that your process maintains its hydraulic efficiency even in small 1/4-inch lines.
Simplified Installation: Unlike other technologies, the T025T is highly robust and requires no straight pipe runs or flow conditioning, allowing for a compact footprint in tight skids.
Multivariable Power: Get direct, real-time measurements of mass flow, density, concentration, volume flow, and temperature from a single, durable device.
Versatile Transmitter Offerings: Compatible with the full suite of Emerson transmitters to meet any analog or digital connectivity need.
Smart Meter Verification (SMV): Verify your meter’s structural integrity and calibration in-process, ensuring high-value batching remains accurate without line breaks.
Hazardous Area Certified: Carries ATEX, CSA, and IECEx approvals, making it safe for use in the most volatile industrial environments.
The Challenge: A specialty coatings manufacturer struggled with curved-tube meters clogging when dosing abrasive pigments in a 1/4-inch line. Mechanical meters were also failing due to the corrosive nature of the carrier fluid.
The Hanyu Solution: The plant switched to the Micro Motion T025T Titanium meter from
Result: The straight-tube design eliminated all clogging issues, while the Titanium Grade 9 construction resisted chemical attack.
Impact: Maintenance downtime was reduced by 100% for that line, and the ±0.15% accuracy ensured perfect color consistency across every batch.
Q: Why choose Titanium over Stainless Steel for a straight-tube meter?
A: Titanium Grade 9 offers enhanced corrosion resistance for fluids like chlorides or organic acids and provides better resonance stability for the straight-tube design, ensuring long-term measurement accuracy.
Q: Is the T025T truly self-draining?
A: Yes. When installed in the recommended orientation, the straight-tube design allows for complete fluid drainage, which is a critical requirement for hygienic and high-purity processes.
Q: Does it require special mounting?
A: The T025T is designed to be robust against external vibrations. While it doesn't need straight runs, proper industrial mounting is recommended to maximize the ELITE-level sensitivity.
