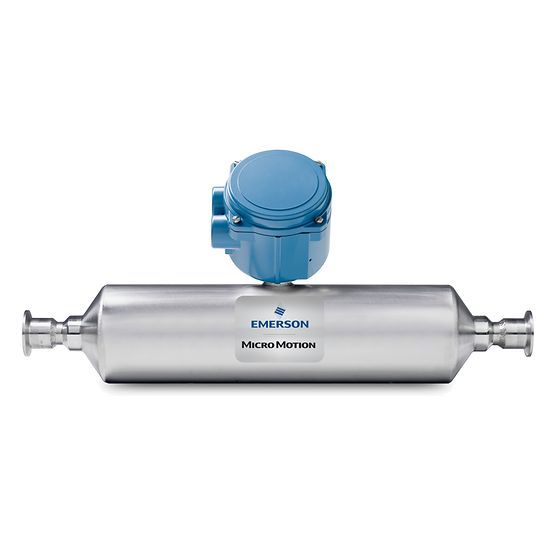

The Micro Motion T-Series sets the standard for Coriolis flow and density measurement where space, hygiene, and fluid integrity are critical. Featuring a unique single straight-tube design, the T-Series provides a plug-resistant flow path that is inherently self-draining. This makes it the premier choice for applications that require frequent cleaning (CIP/SIP) or handle fluids sensitive to high shear.
Available through
| Feature | Performance Data |
| Liquid Accuracy / Repeatability | ±0.15% (±0.05%) of rate |
| Density Accuracy / Repeatability | ±0.002 $g/cm^3$ (±0.0005 $g/cm^3$) |
| Gas Accuracy | ±0.50% of rate |
| Line Size Range | DN8 to DN50 (1/4" to 2") |
| Wetted Materials | Titanium (Superior corrosion resistance) |
| Temperature Range | -51 to 149 °C (-60 to 300 °F) |
| Max. Pressure | 100 barg (1450 psig) |
| Surface Finish | Up to 15 & 32 rA (Hygienic standard) |
Hygienic & Self-Draining: The straight-tube geometry ensures no fluid is trapped, meeting the strictest 3-A, EHEDG, and ASME BPE standards. Perfect for food, beverage, and life sciences.
Titanium Construction: Titanium offers a much wider range of chemical compatibility compared to standard stainless steel, specifically against chlorides and acidic media.
Low Shear Measurement: Unlike bent-tube meters, the straight-tube design minimizes mechanical stress on the fluid, preserving the quality of shear-sensitive products like cream or delicate polymers.
Plug-Resistant Path: Ideal for "dirty" fluids or slurries that might clog traditional dual-tube Coriolis meters. The full-bore straight path ensures maximum uptime.
Smart Electronics: Fully compatible with ProLink III and a wide range of transmitters, supporting Ethernet/IP, PROFINET, HART, and Modbus for seamless Industry 4.0 integration.
Expansive I/O: Supports mA, Frequency, Discrete, and digital protocols (FOUNDATION Fieldbus, etc.).
Global Approvals: Certified for hazardous areas including ATEX, IECEx, and CSA (Class 1 Div 1 & 2).
Rugged Reliability: Rated IP66/67 for protection against water ingress in wash-down environments and NAMUR NE132 compliant.
The Challenge: A pharmaceutical plant needed to measure the mass flow of a highly corrosive, chloride-based solvent. Traditional stainless steel meters suffered from pitting corrosion, and bent-tube meters were difficult to drain completely between batches.
The Hanyu Solution: The plant switched to the Micro Motion T-Series with titanium construction from
The Result: The titanium tubes showed zero signs of corrosion after 12 months of service.
The Impact: Thanks to the self-draining straight tube, the plant reduced batch changeover time by 40% and eliminated the risk of cross-contamination. The ±0.15% accuracy ensured exact dosing, reducing raw material waste significantly.
Q: Why choose Titanium over Stainless Steel?
A: Titanium is significantly more resistant to corrosion from salts, acids, and oxidizing chlorides. It also offers a higher strength-to-weight ratio, which enhances the sensitivity of the Coriolis measurement.
Q: Does the T-Series require long straight pipe runs?
A: No. One of the greatest advantages of Micro Motion Coriolis technology is that it is independent of flow profile. You can install the T-Series in tight spaces immediately after an elbow or valve.
Q: Is the T-Series suitable for SIP (Steam-in-Place)?
A: Yes. The robust titanium design and high-temperature rating make it fully compatible with SIP and CIP processes common in hygienic industries.
Q4: How does Hanyu Zhilian support my technical selection?
A: We provide expert sizing and selection via Emerson's official tools to ensure the meter fits your pressure drop and accuracy requirements. All consultations are confidential per our Privacy Policy.
