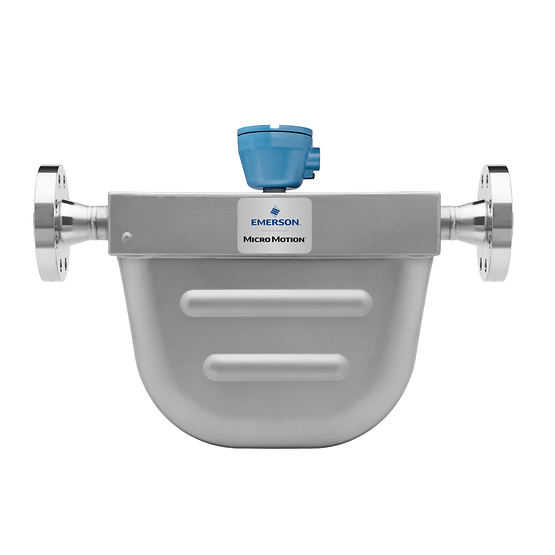

The Micro Motion R200S (DN50) is engineered for general-purpose industrial applications where reliability and ease of installation are paramount. Constructed from 316L Stainless Steel, this R-Series meter offers a compact footprint that fits into tight piping layouts without sacrificing the legendary stability of Micro Motion technology.
Available through
| Feature | Performance Data |
| Line Size | 2 Inch (DN50) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Flow Accuracy | Standard: ±0.50% |
| Gas Mass Flow Accuracy | ±0.75% of rate |
| Density Accuracy (Liquid) | Standard: ±0.01 $g/cm^3$ |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Safety Certifications | CSA, IECEx, NEPSI, ATEX, NAMUR |
Compact & Low Profile: The R200S is significantly more compact than high-end ELITE series meters, making it ideal for skid-mounted systems and retrofitting into existing pipeline gaps.
Self-Drainable Design: The curved tube geometry is optimized for fluid drainage, reducing product cross-contamination and making it suitable for processes that require frequent line clearing.
Cost-Efficient Architecture: By focusing on "flow-variable-only" data through integral transmitters, the R200S provides the benefits of Coriolis technology at a lower capital investment.
Zero Maintenance: With no moving parts to wear, stick, or break, the R200S eliminates the frequent recalibration and repair cycles associated with turbine or positive displacement meters.
Rugged Connectivity: Choose from various transmitter options, including Class I, Div 1/Zone 1 housings with optional Local Operator Interfaces (LOI) for easy field configuration.
Integrated Transmitters: Streamlined setup with transmitters that mount directly to the sensor.
Digital Protocols: HART, Modbus, and various I/O options for seamless integration into DCS and PLC systems.
Environmental Protection: Rated IP66/67 for high-pressure washdowns and harsh outdoor environments.
The Challenge: A terminal operator needed a reliable flowmeter for blending light oils. The space on the blending skid was extremely tight, and the previous mechanical meters were failing due to paraffin buildup.
The Hanyu Solution: The operator installed the Micro Motion R200S via
The Result: The compact 2-inch R200S fit perfectly into the existing footprint without re-piping.
The Impact: Maintenance costs dropped to zero as the Coriolis sensor remained unaffected by fluid viscosity or buildup. The operator achieved a 25% increase in blending precision, leading to better product quality and fewer off-spec batches.
Q: When should I choose the R-Series over the ELITE (CMF) Series?
A: The R-Series is the "standard" choice for general purpose applications where ±0.4% to ±0.5% accuracy is sufficient. Choose the ELITE series if you require ultra-high precision (±0.05%), extreme temperatures, or fiscal custody transfer.
Q: Is the R200S suitable for gas flow?
A: Yes, the R200S handles gas with ±0.75% accuracy. It is widely used for monitoring compressed air, nitrogen, and fuel gas lines.
Q: Does it require flow conditioners?
A: No. Like all Micro Motion Coriolis meters, the R200S is independent of flow profile. You can install it directly after valves or elbows without losing accuracy.
Q4: How does Hanyu Zhilian support my purchase?
A: We provide full technical validation and sizing to ensure the R200S meets your pressure drop requirements. Every unit is shipped with original documentation and global warranty support. All project data is confidential per our Privacy Policy.
