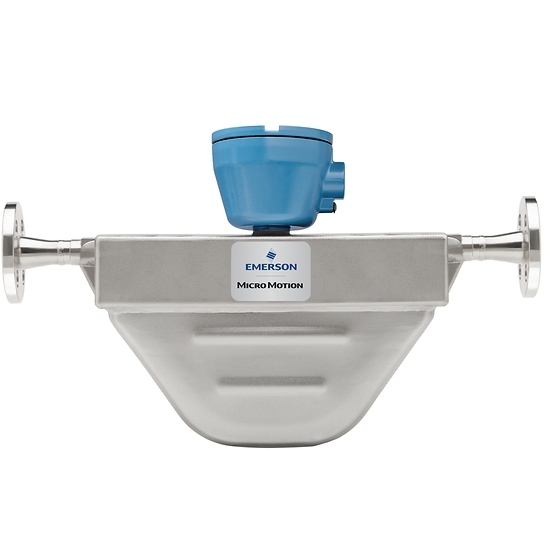

The Micro Motion R050S is a robust and versatile 1/2-inch (DN15) Coriolis flow and density meter, engineered for excellence in general-purpose process control. Constructed from high-grade 316L Stainless Steel, the R-Series delivers the legendary reliability of Micro Motion technology in a cost-effective, compact package. It is the ideal solution for industrial applications requiring reliable mass flow measurement without the extreme complexity of premium specialty meters.
Compact & Drainable Design: The R050S features a unique geometry that ensures the sensor is fully drainable, reducing product waste and footprint in skid-mounted systems.
316L Stainless Steel Construction: Compatible with a wide array of industrial fluids, ensuring long-term durability in diverse environments.
Low Maintenance, High Reliability: With no moving parts to wear or replace, the R050S maximizes uptime and significantly reduces total cost of ownership compared to mechanical meters.
Flexible Transmitter Options: Available with integral or remote electronics, supporting a broad range of protocols including HART, Modbus, and more.
Global Safety Approvals: Fully certified for hazardous areas including CSA, ATEX, IECEx, and NEPSI, suitable for Class I, Division 1/Zone 1 environments.
Easy Installation: Requires no straight pipe runs and fits virtually anywhere due to its low-footprint design.
| Feature | Specification Details |
| Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Accuracy | ±0.50% (Standard) / ±0.40% (Optional) |
| Liquid Density Accuracy | ±0.01 g/cm³ (Standard) / ±0.003 g/cm³ (Optional) |
| Max Working Pressure | 1,450 psig (100 barg) |
| Process Temp Range | -58°F to 302°F (-50°C to 150°C) |
| Hazardous Approvals | CSA, IECEx, ATEX, NEPSI, NAMUR |
Q: Which industries typically use the Micro Motion R050S?
A: The R050S is widely utilized in chemical processing, food and beverage utilities, fuel monitoring, and pulp and paper industries where reliable process control is required.
Q: Can the R050S measure both liquid and gas?
A: Yes. While optimized for liquids (±0.50% accuracy), it can also measure gas mass flow with an accuracy of up to ±0.75% of rate.
Q: How does the R050S compare to traditional mechanical flow meters?
A: Unlike turbine or PD meters, the R050S measures mass flow directly. It is not affected by changes in viscosity, temperature, or pressure, and has no moving parts to clog or fail.
