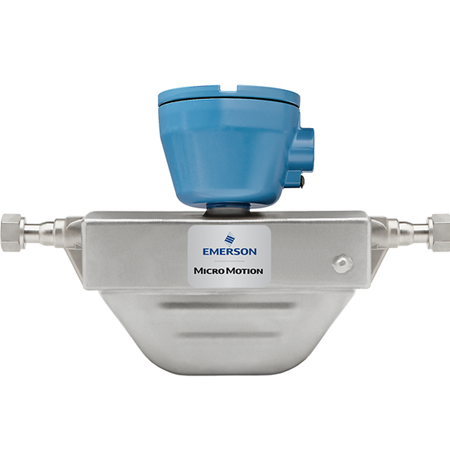

The Micro Motion R025P is a high-performance, 1/4-inch (DN6) Coriolis flow meter engineered for high-pressure industrial environments. Constructed from robust 316L Stainless Steel, the R025P offers a compact and drainable design that excels in general-purpose applications. It is the ideal solution for users needing reliable mass flow and density measurement where installation space is limited but high-pressure integrity (up to 2,300 psig) is required.
Compact, Space-Saving Design: Its small footprint allows for installation in tight spaces and skid-mounted systems without sacrificing performance.
High-Pressure Durability: Specifically reinforced to handle process pressures up to 2,300 psig (159 barg).
Maintenance-Free Operation: No moving parts to wear, tear, or replace, ensuring long-term reliability and reduced total cost of ownership.
Flexible Construction: 316L Stainless Steel wetted parts ensure compatibility with a wide range of process fluids.
Advanced Safety Options: Available with a rupture disk or purge fitting case for enhanced protection in critical applications.
Global Certifications: Fully compliant with ATEX, IECEx, CSA, and NEPSI for use in hazardous areas.
| Feature | Specification Details |
| Line Size | 1/4 Inch (DN6) |
| Mass Flow Accuracy (Liquid) | ±0.50% (Standard) / ±0.40% (Optional) |
| Mass Flow Repeatability | ±0.25% (Standard) / ±0.20% (Optional) |
| Gas Flow Accuracy | ±0.75% of rate |
| Density Accuracy (Liquid) | ±0.01 g/cm³ (Standard) / ±0.003 g/cm³ (Optional) |
| Max Working Pressure | 2,300 psig (159 barg) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Wetted Material | 316L Stainless Steel |
Q1: What industries typically use the Micro Motion R025P?
A: Due to its compact size and high-pressure rating, the R025P is widely used in chemical injection skids, pilot plants, and high-pressure gas sampling systems.
Q2: Can I get an integral transmitter with this model?
A: Yes. The R025P can be configured with an integral transmitter to reduce installation costs and provide a simplified flow-variable-only architecture.
Q3: How does the R025P handle environmental effects?
A: The R-series is designed for ruggedness. With IP66/67 ingress protection and a robust 316L SST casing, it performs reliably even in harsh environmental conditions.
