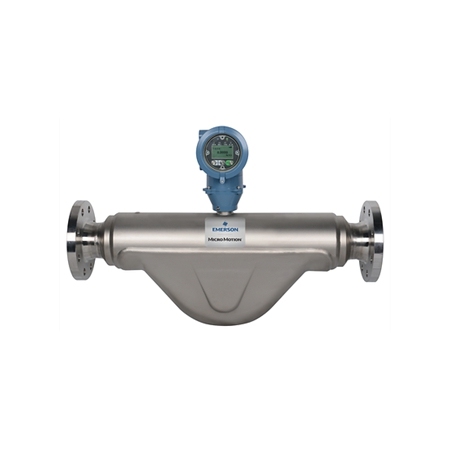

The Micro Motion K300S is a robust and reliable 3-inch (DN80) Coriolis meter engineered for excellence in general industrial process control. Built with high-grade 316L Stainless Steel, the K300S provides a highly accurate and repeatable platform for measuring mass flow, volume flow, and density. It is specifically designed for users who require the precision of Micro Motion technology in high-flow applications while maintaining a focus on operational efficiency and cost-effectiveness.
Optimized for High Flow: The 3-inch (DN80) size accommodates large-scale process requirements in chemical, water treatment, and industrial manufacturing.
Multi-Variable Measurement: Simultaneously captures mass flow, density, and temperature, eliminating the need for multiple independent sensors.
Low Maintenance: Features a sensor design with no moving parts, significantly reducing downtime and long-term maintenance costs.
Robust 316L Construction: Ensures excellent chemical compatibility and durability across a wide range of process fluids.
Simplified Installation: Like all K-Series meters, it requires no straight pipe runs or flow conditioning, allowing for flexible and compact piping layouts.
Global Certifications: Fully certified with ATEX, IECEx, CSA, and NEPSI for safe operation in hazardous environments.
| Feature | Specification Details |
| Line Size | 3 Inch (DN80) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Flow Accuracy | ±0.15% of rate |
| Liquid Mass Repeatability | ±0.05% of rate |
| Liquid Density Accuracy | ±0.002 g/cm³ (±2.0 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | Industry-standard ratings for DN80 |
| Measurement Range | Ideal for high-volume general process flow |
Q1: What is the main difference between the K-Series and ELITE series for a 3-inch meter?
A1: While the ELITE series (CMF) offers peak performance for critical custody transfer, the K-Series (K300S) is optimized for general process control, providing a more cost-effective solution with excellent reliability and standard accuracy (±0.15%).
Q2: Does the K300S handle gas flow measurement?
A2: Yes, the K300S is capable of gas measurement with high repeatability, though it is primarily optimized for liquid applications within industrial processes.
Q3: Can I use the K300S in hazardous areas?
A3: Absolutely. The K300S carries a broad range of approvals, including CSA, ATEX, and IECEx, making it suitable for Class 1 Division 1 and 2 environments.
Q4: Is special mounting required for the 3-inch DN80 sensor?
A4: No special flow conditioning or straight pipe runs are required. However, for a 3-inch sensor, ensuring proper support and alignment within the piping system is recommended to maintain optimal measurement stability.
