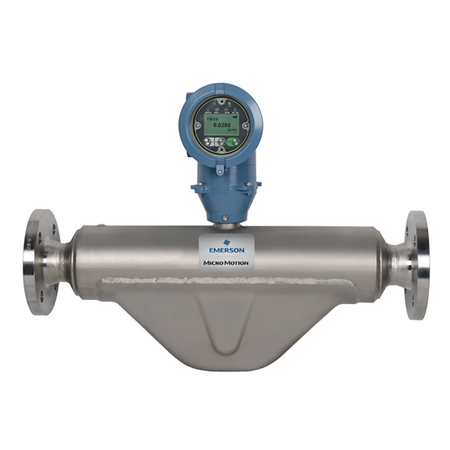

The Micro Motion K200S (DN50) is the workhorse of the K-Series family, designed to provide high-performance mass flow and density measurement across a wide dynamic range. In a 2-inch line size, this 316L Stainless Steel sensor offers the perfect combination of industrial-grade durability and the precision required for reliable process control.
Available through
| Feature | Performance Data |
| Nominal Line Size | 2 Inch (DN50) |
| Wetted Material | 316L Stainless Steel |
| Mass Flow Accuracy (Liquid) | ±0.10% of rate (Optional) |
| Mass Flow Repeatability | ±0.05% of rate |
| Volume Flow Accuracy | ±0.15% of rate |
| Density Accuracy (Liquid) | ±0.001 $g/cm^3$ (Standard) |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
Exceptional Rangeability: The K200S maintains high accuracy even at lower flow rates, reducing the need for multiple meter sizes and improving overall scalability for your plant.
Multivariable Digital (MVD) Technology: Powered by Micro Motion's industry-leading signal processing, the K200S provides stable measurement even in the presence of process noise or slight vibrations.
Lower Cost of Ownership: The K-Series is designed to provide ELITE-level reliability in a package optimized for general process applications, offering the best value for standard industrial requirements.
Smart Meter Verification (SMV): Verify the health of your 2-inch flow meter in under 90 seconds without stopping the process. SMV ensures the K200S is performing to factory specifications without needing an external calibration lab.
Rugged 316L Construction: The all-welded stainless steel design provides superior corrosion resistance and high pressure ratings (up to 100 bar), suitable for harsh industrial environments.
Advanced Transmitter Support: Pairs perfectly with the Emerson 5700, 2400, and 1700 transmitters to provide easy-to-read local displays and advanced data logging.
Seamless Digital Communication: Full support for HART, Modbus, PROFINET, and EtherNet/IP ensures easy integration into your existing PLC/DCS architecture.
Global Safety Approvals: Fully certified for hazardous areas (ATEX, IECEx, CSA, NEPSI) and meets SIL2/SIL3 safety standards.
The Challenge: A chemical plant needed a reliable 2-inch flow meter for blending liquid additives. The meter had to be accurate enough for inventory control but robust enough to handle the pulsations of positive displacement pumps.
The Hanyu Solution: The plant integrated the Micro Motion K200S via
The Result: The K200S’s MVD technology filtered out the pump pulsations, maintaining a stable ±0.10% mass flow accuracy.
The Impact: Blending consistency improved by 15%, and the facility successfully reduced its chemical overfill waste by 8%, paying for the meter in less than six months.
Q: Is the K200S suitable for gas flow measurement?
A: Yes. The K200S is a multivariable sensor that provides repeatable gas mass flow measurement with an accuracy of ±0.50%.
Q: Can it be used for Custody Transfer?
A: While the ELITE series is the gold standard for custody transfer, the K200S is often used for internal fiscal accounting and high-accuracy inventory management due to its stable ±0.10% performance.
Q: Does it require straight pipe runs?
A: No. As a Coriolis meter, the K200S is independent of the flow profile, meaning it can be installed anywhere in your 2-inch line without needing upstream or downstream straight runs.
Q4: How does Hanyu Zhilian support these industrial sensors?
A: We provide 100% original factory units with full documentation, including Material Traceability Reports (MTRs) and original calibration certificates. Your project data is confidential per our Privacy Policy.
