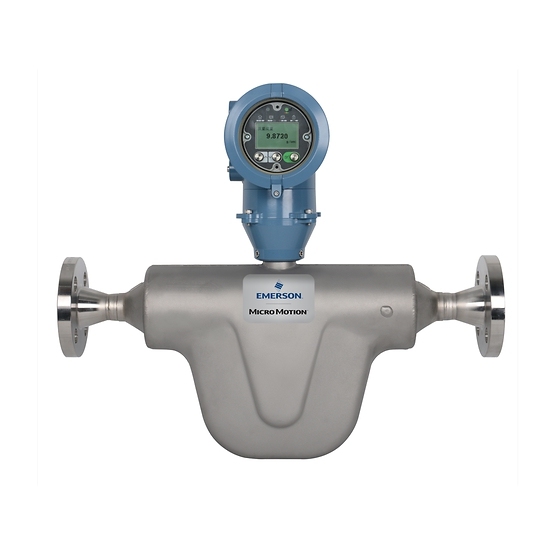

The Micro Motion K100S is a robust and versatile 1-inch (DN25) Coriolis meter designed for general process control. Constructed from high-grade 316L Stainless Steel, the K-Series delivers the reliability of Micro Motion technology in a cost-effective package. It is the ideal solution for industrial applications requiring accurate mass flow, volume flow, and density measurement across a broad range of flow rates without the need for the extreme precision of the ELITE series.
Reliable General Purpose Performance: Achieves ±0.15% liquid mass accuracy, providing the perfect balance between cost and precision for plant utilities and basic process loops.
Multi-Variable Measurement: Simultaneously measures mass flow, volume flow, density, and temperature with a single device.
Low Maintenance & No Moving Parts: Unlike mechanical flow meters, the K100S has no parts to wear out or replace, drastically reducing total cost of ownership.
Broad Connectivity: Compatible with advanced Micro Motion transmitters (like the 1700/2700) for seamless integration into HART, Modbus, or Ethernet/IP networks.
Compact Footprint: Engineered for easy installation in existing piping without requiring straight pipe runs, saving valuable space in your facility.
Smart Meter Verification (SMV): Optional on-board diagnostics ensure meter health and measurement confidence in real-time.
| Specification | Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Accuracy | ±0.15% of rate |
| Liquid Volume Accuracy | ±0.25% of rate |
| Gas Mass Accuracy | ±0.50% of rate |
| Density Accuracy | ±0.002 g/cm³ (±2.0 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Pressure Rating | Up to 1,450 psig (100 barg) |
Q: Why choose the K100S over the R-Series or ELITE series?
A: The K100S sits between the two. It offers higher accuracy and better sensitivity than the R-Series (General Purpose), but at a more accessible price point than the ELITE series (Peak Performance). It’s perfect for standard industrial processes where 0.15% accuracy is more than sufficient.
Q: Does the K100S require straight pipe runs for installation?
A: No. Like most Coriolis meters, the K100S is immune to flow profile disturbances, meaning you can install it directly after elbows or valves without affecting measurement accuracy.
Q3: Can the K100S be used for hazardous areas?
A3: Yes, the K100S comes with a full suite of global approvals including ATEX, IECEx, and CSA, making it safe for use in Class 1 Div 1 and Zone 1 environments.
