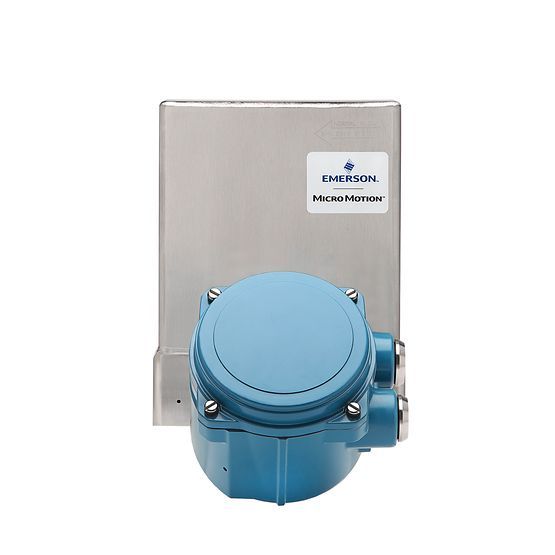

The Micro Motion HPC015N is a precision-engineered stainless steel Coriolis meter designed specifically for the most demanding high-pressure environments. Capable of withstanding operating pressures up to 13,960 psi (963 bar), it is the industry standard for Hydrogen (H2) refueling stations and Subsea Chemical Injection (CIMV) systems.
Available through
| Feature | Performance Data |
| Max. Operating Pressure | 13,960 psi (963 bar) |
| Nominal Line Size | 1/8 inch (DN3) |
| Mass Flow Accuracy (Liquid) | ±0.1% of rate (Top-tier precision) |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Flow Rate Range | Up to 504 kg/hr (1110 lb/hr) |
| Fluid Temperature Range | -46 °C to 200 °C (-50 °F to 392 °F) |
| Density Accuracy | ±0.001 $g/cm^3$ at standard conditions |
| Transmitter Options | 5700, 2-Wire, or Direct Connect |
Hydrogen Ready: Engineered to handle the unique challenges of high-pressure hydrogen dispensing, ensuring accurate billing and safe fueling at 350 or 700 bar stations.
Smart Meter Verification (SMV): High-pressure systems are difficult to service. SMV allows you to verify the meter's internal health and tube integrity in situ, without depressurizing the line or removing the sensor.
Chemical Injection Efficiency: In oil and gas, over-injecting chemicals is expensive. The ±0.1% accuracy of the HPC015N ensures precise dosing, drastically reducing chemical OPEX.
Zero Moving Parts: Unlike high-pressure turbine or gear meters, the HPC015N has no parts to wear or replace, eliminating the risk of mechanical failure in critical subsea or dispenser applications.
Direct Connect Flexibility: Available with direct-connect electronics (no separate transmitter needed) to save space in compact dispenser cabinets or subsea pods.
The HPC015N adapts to any system architecture:
Advanced Integration: Pairs with the 5700 Transmitter for a 9-wire high-speed connection and detailed data logging.
Compact Integration: 2-wire or direct-connect options for space-constrained skid and cabinet designs.
Protocols: HART, Modbus, Ethernet/IP, and PROFINET ready.
The Challenge: A hydrogen fuel provider needed a flowmeter for their 700 bar light-duty vehicle dispensers. The meter had to maintain extreme accuracy despite the rapid pressure and temperature fluctuations during the fueling cycle.
The Hanyu Solution: The provider integrated the Micro Motion HPC015N via
The Result: The HPC015N delivered consistent ±0.5% gas accuracy even at 900+ bar peak pressures.
The Impact: The provider achieved legal-for-trade billing compliance and maximized uptime. Thanks to Smart Meter Verification, they could perform monthly safety checks in minutes, ensuring the dispensing station remained safe and operational 24/7.
Q: Is the HPC015N rated for Subsea use?
A: Yes. Its stainless steel construction and high-pressure rating make it a preferred choice for subsea chemical injection valves (CIMV) and umbilical distribution units.
Q: Can it handle rapid temperature changes?
A: Absolutely. The HPC015N is designed to maintain accuracy across its temperature range of -46 °C to 200 °C, which is critical during high-pressure gas compression or expansion.
Q: How do I choose between the HPC015N and other Micro Motion meters?
A: The HPC015N is specifically for High Pressure (963 bar). If your application is below 100 bar, the ELITE series might be more cost-effective. Hanyu Zhilian can perform a sizing analysis to determine the best fit for your pressure drop.
Q4: Does Hanyu Zhilian offer global shipping for high-pressure components?
A: Yes. We specialize in the international supply of Micro Motion sensors. All units are shipped with original factory calibration certificates and documentation. All project data is confidential per our Privacy Policy.
