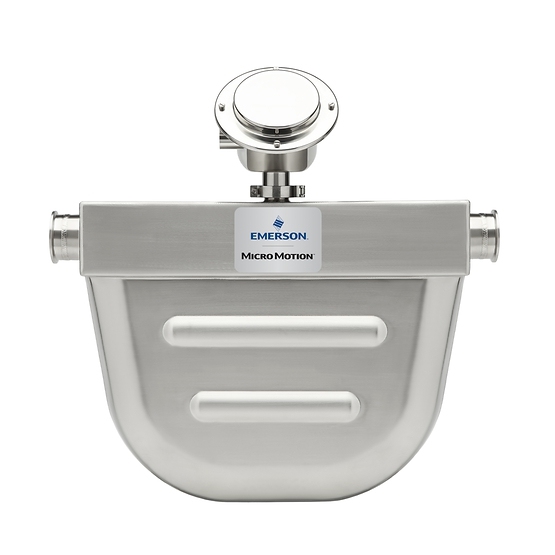

The Micro Motion H200S (DN50) is a 2-inch Coriolis meter purpose-built for the food, beverage, and life sciences industries. Featuring a 316L Stainless Steel body with a standard 30 Ra (0.8 μm) finish, this sensor is engineered to meet the most rigorous 3-A and EHEDG requirements.
Available through
| Feature | Performance Data |
| Nominal Line Size | 2 Inch (DN50) |
| Wetted Material | 316L Stainless Steel |
| Surface Finish | Standard 30 Ra (0.8 μm) (Optional up to 15 Ra) |
| Hygienic Standards | 3-A, EHEDG Approved |
| Mass Flow Accuracy (Liq) | Standard: ±0.15% |
| Density Accuracy (Liq) | Up to ±0.0005 $g/cm^3$ (±0.5 $kg/m^3$) |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Certification | ATEX, IECEx, CSA, Ingress Protection 66/67 |
Uncompromised Sterility: Fully compliant with 3-A and EHEDG standards. The polished internals and lack of moving parts eliminate bacterial trap points, ensuring your product's purity.
Self-Draining Design: The compact sensor geometry allows for full drainage in vertical installations. This reduces waste during product change-overs and speeds up the validation of cleaning cycles.
Superior Density Measurement: Essential for the food and beverage industry, the H200S provides elite density precision (up to ±0.0005 $g/cm^3$), allowing for real-time concentration monitoring of sugar (Brix), alcohol, or solids.
Smart Meter Verification (SMV): Verify your meter’s calibration and structural integrity in-process. SMV provides a digital audit trail that simplifies compliance with FDA and other regulatory requirements.
Advanced Two-Phase Flow Handling: Equipped to handle entrained air and aerated fluids, the H200S remains stable during tank bottom stripping or batching processes where air might be present.
Temperature Stability: Engineered to maintain accuracy during rapid temperature shifts, such as the transition from cold process fluids to hot CIP chemicals or steam.
Hygienic Housing: Available with a polished SST transmitter housing to maintain a consistent sanitary environment.
Digital Integration: Fully compatible with Emerson’s 5700 and 2400 transmitters, supporting protocols like HART, Modbus, PROFINET, and EtherNet/IP.
Real-Time Historian: Built-in data logging tracks process upsets and meter performance, providing critical data for quality control audits.
The Challenge: A dairy producer needed to dose milk and cream at a 2-inch scale. The meter had to be fully drainable to prevent spoilage between batches and withstand daily 130°C SIP cycles.
The Hanyu Solution: The producer installed the Micro Motion H200S from
The Result: The 30 Ra finish and self-draining design met all EHEDG audits. ±0.10% accuracy ensured consistent fat content in every batch.
The Impact: Product loss was reduced by 10%, and cleaning times were shortened by 20%, significantly increasing daily production capacity.
Q: Can the H200S be used for fluids with entrained air, like ice cream mix?
A: Yes. The H200S features superior two-phase flow capabilities, making it excellent for aerated hygienic fluids where standard meters might struggle.
Q: Is a finer surface finish than 30 Ra available?
A: Yes. While 30 Ra is standard, we offer high-polish options up to 15 Ra (0.4 μm) for ultra-pure pharmaceutical applications.
Q: Is the H200S compatible with existing hygienic fittings?
A: Absolutely. The H200S is available with various sanitary connections, including Tri-Clamp, DIN, and SMS, ensuring a seamless fit into your current piping.
Q4: Why source the H200S from Hanyu Zhilian?
A: We provide 100% original and brand-new Emerson products, accompanied by a comprehensive documentation package including Material Traceability Reports (MTRs), 3-A/EHEDG Compliance Certificates, and original Factory Calibration Certificates. In the food and pharmaceutical industries, we understand that hygiene and safety are paramount; therefore, we provide the highest standard of dust-free protective packaging and dedicated technical support to ensure your process remains sterile and efficient.
