High-Precision 2-Inch (DN50) Sensor in 316L Stainless Steel

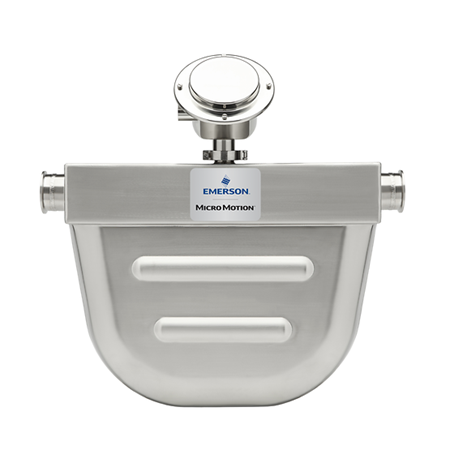

The Micro Motion H200F is a premier hygienic Coriolis meter designed specifically for the food, beverage, and pharmaceutical industries. Featuring a 15 Ra (0.4 μm) surface finish and constructed from 316L Stainless Steel, it ensures maximum product safety and process integrity in sanitary environments.
| Feature | Technical Data |
| Line Size | 2 Inch (DN50) |
| Wetted Material | 316L Stainless Steel |
| Surface Finish | 15 Ra (0.4 μm) |
| Mass Flow Accuracy (Liquid) | Up to ±0.10% of rate (Optional) |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (Optional) |
| Max Pressure | 1,015 psig (70 barg) |
| Approvals | 3-A, EHEDG, ATEX, IECEx, CSA |
Compliant with Global Standards: Fully 3-A and EHEDG certified, making it ideal for SIP (Sterilization-in-Place) and CIP (Clean-in-Place) processes.
Superior Surface Integrity: The 15 Ra finish minimizes bacterial growth and ensures easy cleaning for sensitive product batches.
Self-Draining Design: Optimized to enable fast product change-overs and minimize waste with a design that ensures no fluid retention.
Smart Meter Verification (SMV): Verify your meter’s health and calibration in-process without stopping production, ensuring continuous compliance.
Advanced Phase Management: Handles two-phase flow and entrained air applications, perfect for dairy or carbonated beverage batching.
Q: What certifications does the Micro Motion H200F hold for hygienic use? A: The H200F is certified by 3-A and EHEDG, ensuring it meets the most stringent global standards for sanitary design and cleanability.
Q: Can the H200F handle entrained air during batching? A: Yes, with its advanced transmitter technology, the H200F provides superior two-phase flow capabilities, making it highly effective for applications with entrained air or gas bubbles.
Q: Why is the 15 Ra finish important? A: A 15 Ra (0.4 μm) finish is a highly polished surface. In the food and pharma industries, this smoothness prevents microbial growth and ensures that the meter can be thoroughly cleaned during CIP cycles.
Q: Does it support remote diagnostics? A: Yes, it supports Smart Meter Verification (SMV), allowing you to monitor meter integrity and performance remotely or in-process without breaking the sanitary seal.
