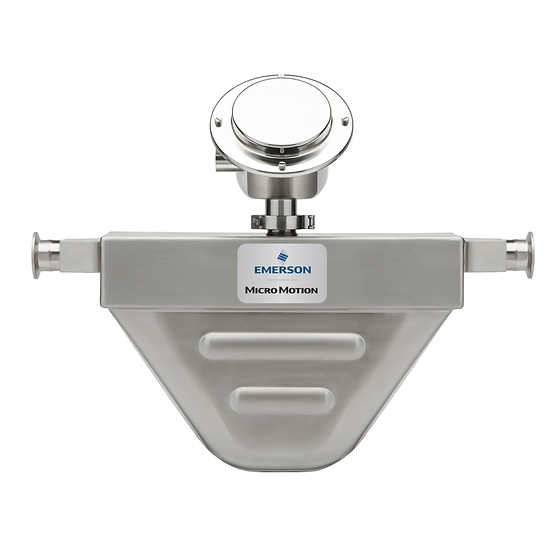

The Micro Motion H100S is a high-performance 1-inch (DN25) Coriolis meter designed specifically for hygienic process control. Constructed from 316L Stainless Steel with a polished 30 Ra (0.8 μm) finish, this meter is fully authorized for 3-A and EHEDG sanitary applications. Its self-draining design and robust multi-variable measurement make it the perfect choice for food and beverage skids, dairy processing, and consumer health product manufacturing.
Hygienic Excellence: Fully compliant with 3-A and EHEDG standards, ensuring safe use in human-grade consumable production.
Optimized Surface Finish: The 30 Ra (0.8 μm) internal finish provides a smooth, non-pitted surface that supports rigorous CIP (Clean-in-Place) and SIP (Steam-in-Place) cycles.
Self-Draining Geometry: Engineered to eliminate fluid entrapment, allowing for fast product change-overs and reduced waste.
Advanced Density & Concentration: Ensure consistent product quality and recipe adherence with industry-leading density measurement sensitivity.
Smart Meter Verification (SMV): Verify your meter's health and calibration integrity in seconds without interrupting your production flow.
Superior Two-Phase Flow: excels in batching and loading applications where entrained air or gas bubbles are present in the process stream.
| Feature | Specification Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | 316L Stainless Steel |
| Surface Finish | 30 Ra (0.8 μm) |
| Liquid Mass Flow Accuracy | ±0.15% (Std) / ±0.10% (Opt) |
| Liquid Density Accuracy | Up to ±0.0005 g/cm³ (Optional) |
| Max Working Pressure | 1,450 psig (100 barg) |
| Repeatability | ±0.05% of rate |
| Certifications | 3-A, EHEDG, ATEX, IECEx, CSA, NAMUR |
Q1: How does the H100S handle high-temperature SIP cycles?
A1: The H100S is designed for superior temperature stability, allowing it to withstand the extreme thermal shocks of Steam-in-Place (SIP) cleaning while maintaining its calibration integrity.
Q2: Is the H100S available with higher-purity finishes?
A2: Yes. While 30 Ra is standard, the H-series can be ordered with a highly polished 15 Ra (0.4 μm) finish for pharmaceutical and biotech applications.
Q3: Does the H100S replace traditional volumetric flow meters?
A3: Absolutely. Unlike volumetric meters, the H100S measures mass, density, and temperature directly, eliminating the need for separate sensors and increasing overall process accuracy.
Q4: Can it be installed in washdown environments?
A4: Yes. With an all-stainless steel housing and IP66/67 ingress protection, the H100S is built to thrive in harsh, high-moisture production floors.
