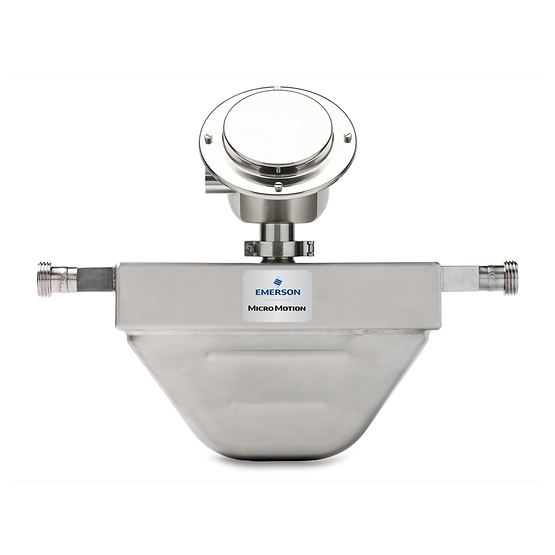

The Micro Motion H050S is a premier 1/2-inch (DN15) Coriolis flow and density meter, precision-crafted from 316L Stainless Steel. Engineered for the most stringent sanitary requirements, it features a 30 Ra (0.8 μm) internal finish (with options up to 15 Ra) and is fully 3-A and EHEDG authorized. The H050S is the ideal solution for food, beverage, and pharmaceutical processes that demand repeatable, high-accuracy measurement combined with a robust, self-draining design.
Certified Hygienic Integrity: Meets 3-A, EHEDG, and ASME BPE standards for use in sterile and sanitary environments.
Superior Surface Finish: Standard 30 Ra (0.8 μm) electropolished wetted parts, with a 15 Ra (0.4 μm) option for ultra-pure applications.
Advanced Density Precision: Gain unparalleled product quality control with optional density accuracy up to ±0.0005 g/cm³.
Self-Draining Geometry: Facilitates fast product change-overs and ensures no entrapment during CIP/SIP cycles.
Smart Meter Verification (SMV): Real-time, in-process diagnostics confirm meter health and calibration without breaking the sterile seal.
Two-Phase Flow Performance: Unmatched capability for handling entrained air, essential for batching and loading milk or viscous food products.
Compact SST Housing: Available with hygienic stainless steel transmitter housings for full washdown protection (IP66/67).
| Feature | Details |
| Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel |
| Surface Finish | 30 Ra (Standard) / 15 Ra (Optional) |
| Liquid Mass Accuracy | ±0.15% (Standard) / ±0.10% (Optional) |
| Density Accuracy | Up to ±0.0005 g/cm³ |
| Max Working Pressure | 1,450 psig (100 barg) |
| Approvals | 3-A, EHEDG, CSA, ATEX, IECEx, NAMUR |
Q: Why is the H050S preferred for dairy and beverage batching?
A: Its ability to handle "two-phase flow" (liquids with entrained air) ensures that batching remains accurate even when air is introduced at the beginning or end of a run, which is common in dairy unloading.
Q: What is the benefit of the 15 Ra surface finish option?
A: A 15 Ra (0.4 μm) finish provides an ultra-smooth surface that significantly reduces bacterial growth and protein binding, making it essential for high-purity pharmaceutical and biotech applications.
Q: Does the H050S require straight pipe runs for installation?
A: No. Like all Micro Motion Coriolis meters, the H050S is immune to flow profile disturbances, allowing you to install it in tight, compact hygienic skids without straight runs.
