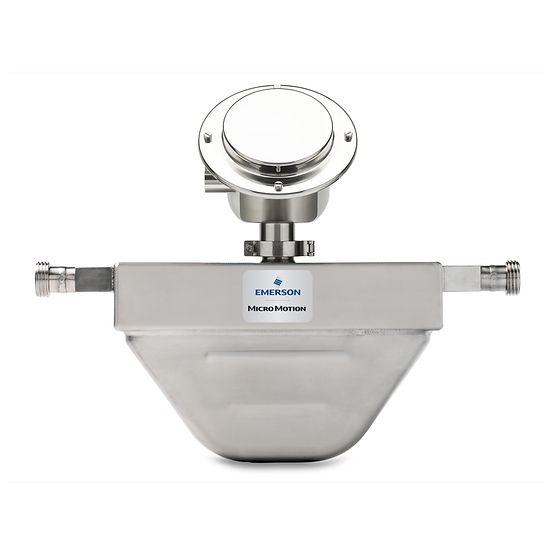

The Micro Motion H050F is a premier 1/2-inch (DN15) Coriolis meter engineered for the strict requirements of the hygienic industry. Crafted from 316L Stainless Steel with an ultra-smooth 15 Ra (0.4 μm) finish, this meter ensures maximum cleanability and sterile integrity. It is the ideal solution for pharmaceutical batching, biotech fermentation, and food processing applications that demand 3-A and EHEDG compliance along with world-class measurement reliability.
Elite Hygienic Design: Fully compliant with 3-A and EHEDG standards, featuring a self-draining architecture that eliminates product holdup.
Superior Surface Integrity: Highly polished 15 Ra finish prevents bacterial growth and facilitates rapid, effective CIP and SIP cycles.
High-Precision Accuracy: Delivers optional liquid mass flow accuracy up to ±0.10% and superior density measurement for consistent product quality.
Two-Phase Flow Capability: Realizes unmatched performance in batching and loading applications, even in the presence of entrained air or gas.
Smart Meter Verification (SMV): Gain real-time assurance of sensor integrity and calibration without breaking the sterile seal or stopping production.
Compact & Robust: Features a space-saving design with a hygienic stainless steel transmitter housing, perfect for skid-mounted sanitary systems.
| Feature | Specification Details |
| Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel |
| Surface Finish | 15 Ra (0.4 μm) |
| Liquid Mass Flow Accuracy | ±0.15% (Std) / ±0.10% (Opt) |
| Liquid Density Accuracy | Up to ±0.0005 g/cm³ (Optional) |
| Max Working Pressure | 1,015 psig (70 barg) |
| Certifications | 3-A, EHEDG, ATEX, IECEx, CSA |
| Repeatability | ±0.05% of rate |
Q1: Why is the 15 Ra finish important for pharmaceutical use?
A1: A 15 Ra finish (0.4 μm) minimizes surface microscopic pits where bacteria can reside, ensuring that the meter can be fully sterilized during SIP/CIP, which is critical for injectable drugs and biotech.
Q2: Does the H050F handle air-entrained liquids?
A2: Yes. The H-Series is specifically optimized to handle entrained air and two-phase flow better than standard Coriolis meters, which is common in food batching and dairy processing.
Q3: Can the H050F be installed in washdown environments?
A3: Absolutely. With its hygienic SST transmitter housing and IP66/67 ingress protection, it is built to withstand high-pressure water and aggressive cleaning agents.
Q4: How does self-draining benefit the process?
A4: The self-draining design allows for faster product change-overs and ensures no residual product is left in the meter, reducing waste and the risk of batch cross-contamination.
