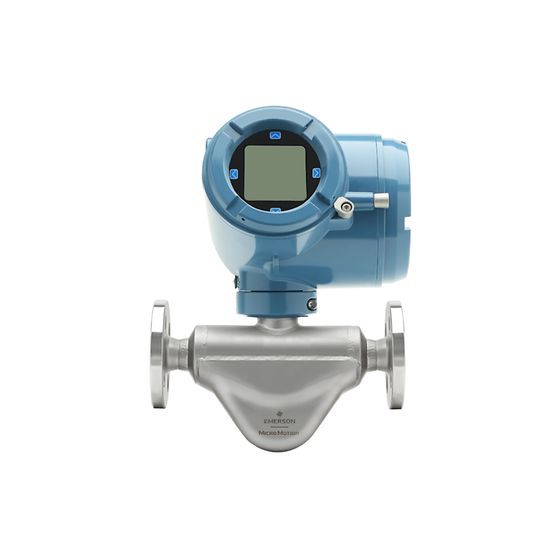

When floor space is at a premium but precision is non-negotiable, the Micro Motion G025M (1/4 Inch / DN6) delivers peak performance in an ultracompact footprint. Weighing only 3.6 kg (8 lb), this lightweight sensor provides elite liquid accuracy up to ±0.10%, making it the industry benchmark for chemical dosing, high-precision additives, and mobile skid installations in both industrial and sanitary environments.
The G025M is specifically engineered for tight integration into laboratory-scale setups and compact industrial skids where other Coriolis meters simply cannot fit. Its laser-etched tagging ensures permanent durability against harsh chemicals and high-pressure washdowns, while its lightweight design allows for effortless handling on portable test rigs or mobile platforms.

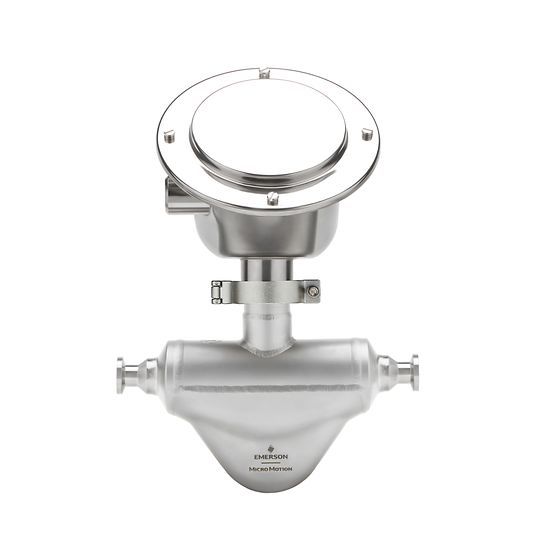

The G025M is a versatile specialist, fully compliant with 3-A, EHEDG, and ASME BPE standards. With options for an improved 15 Ra (0.4 μm) surface finish, it is perfectly suited for sterile pharmaceutical environments and high-purity food processes requiring routine CIP (Clean-in-Place) and SIP (Steam-in-Place) cycles.
| Feature | Standard Performance | Advanced Accuracy Option |
| Nominal Line Size | 1/4 Inch (DN6) | 1/4 Inch (DN6) |
| Liquid Mass Accuracy | ±0.25% of rate | ±0.10% of rate |
| Liquid Repeatability | 0.125% of rate | 0.05% of rate |
| Density Accuracy | ±0.005 g/cm³ | ±0.005 g/cm³ |
| Wetted Material | 316L Stainless Steel | 316L Stainless Steel |
| Max Working Pressure | 1,450 psig (100 barg) | 1,450 psig (100 barg) |
| Safety Certifications | SIL 2 | SIL 3 Capable |
In applications such as precision chemical mixing or additive dosing, traditional meters often struggle with signal noise and space constraints. The G025M uses advanced multivariable digital technology to stabilize readings. Furthermore, the Smart Meter Verification (SMV) feature provides in-process measurement integrity assurance, allowing you to verify the sensor's health in under 90 seconds without stopping the flow—essential for maintaining strict regulatory compliance and operational uptime.
Q: Is the Micro Motion G025M suitable for food and beverage use?
A: Yes, the G025M is fully 3-A and EHEDG certified with an optional 15 Ra finish, making it ideal for precision dosing and flavoring in sanitary food and beverage environments.
Q: Can this meter handle high-pressure applications?
A: Despite its compact size, the G025M is robustly built with a maximum working pressure of 1,450 psig (100 barg), suitable for most industrial high-pressure dosing pumps.
Q: Does the G025M measure density and temperature?
A: Absolutely. Like all Micro Motion ELITE-based technology, the G025M is a multivariable device that provides real-time mass flow, volume flow, density, and temperature from a single sensor.
