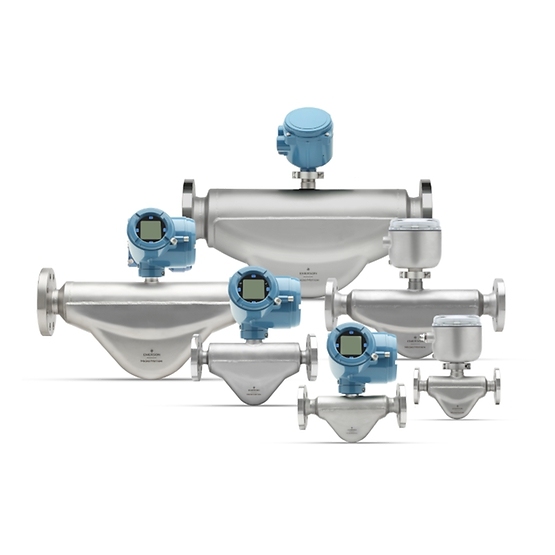

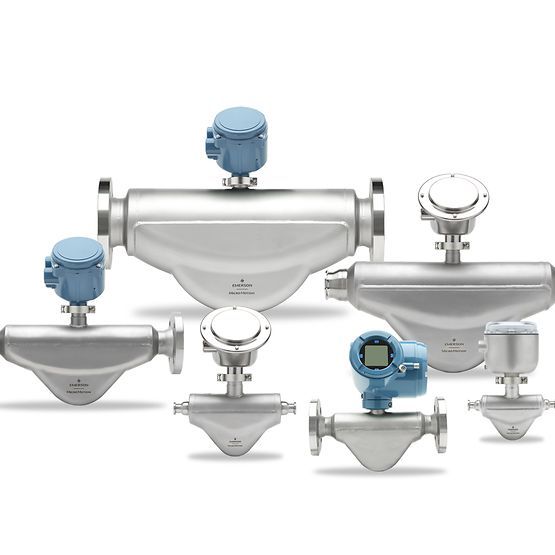

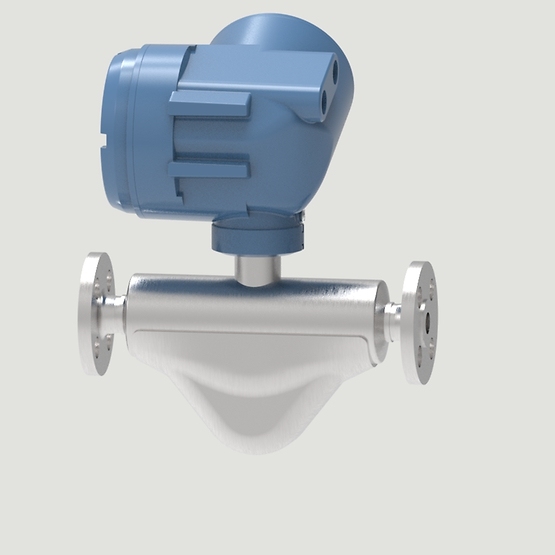

The Micro Motion G-Series sets a new benchmark for ultracompact footprint and versatility in mass flow and density measurement. Designed to fit where space is limited, these lightweight sensors provide an accurate repeatable flow measurement required for both general process monitoring and high-stakes optimization applications.
In modern industrial environments, space is a premium. The G-Series offers a market-leading compactness that allows for simple installation even in the most cramped piping configurations. Despite its small size, it delivers a robust measurement solution, featuring a liquid mass flow accuracy of up to ±0.1% of rate and a sensor maximum working pressure of 1,450 psig.

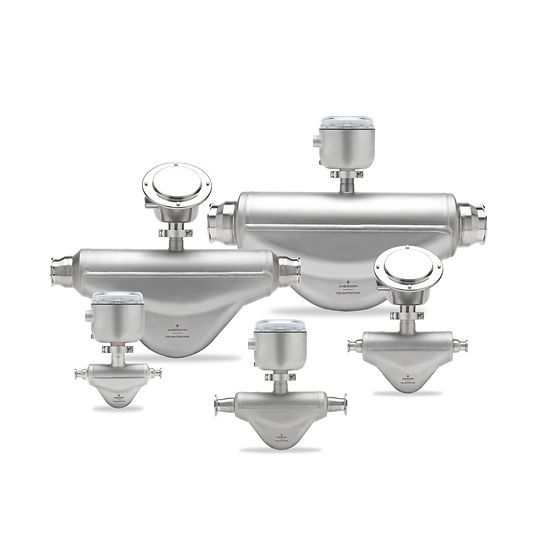

Now available in a hygienic option, the G-Series brings trusted performance to sanitary applications in the Life Sciences and Food & Beverage industries. Its cleanable, self-draining design ensures contamination-free measurement, meeting the rigorous requirements of 3-A, EHEDG, and ASME BPE standards. Whether you are handling chemical dosing or delicate food products, the G-Series is a simple, reliable choice for controlled environments.
Constructed with high-grade 316L Stainless Steel, the G-Series is built for durability in challenging environments. It is available with improved surface finish stainless steel options up to 15 Ra, making it perfectly suited for SIP and CIP cycles. Every unit features laser-etched tagging to ensure long-term legibility and compliance throughout the meter's lifecycle.
Maximize your facility's uptime and maintain measurement integrity assurance with integrated Smart Meter Verification (SMV). This technology allows you to verify sensor health and calibration in real-time, in-process, without the need to pull the meter out of service. This streamlined maintenance approach makes the G-Series a truly low-maintenance flow meter.
| Feature | Specification Details |
| Line Size Range | 1/4" (DN6) to 3" (DN80) |
| Liquid Accuracy | Up to ±0.1% of rate |
| Density Accuracy | Up to ±0.005 g/cm³ |
| Pressure Range | Up to 1,450 psig |
| Temperature Range | -76 °F to 302 °F (-60 °C to 150 °C) |
| Electronics/IO | mA, Frequency, Discrete, HART, Modbus, Ethernet/IP |
Choosing the right configuration is easy using MyEmerson tools. The G-Series provides broad connectivity and ease of use with the latest Micro Motion transmitters, ensuring a quick setup and seamless integration into your existing control architecture.
The G-Series carries a broad range of meter approvals and certifications, including CSA, ATEX, IECEx, and NAMUR. With SIL 2 and SIL 3 capabilities, it provides the safety assurance required for critical industrial processes.
Q: What is the measurement accuracy of the Micro Motion G-Series?
A: For liquids, it offers accuracy up to ±0.1% of rate, while for gas applications, it provides up to ±0.5% accuracy.
Q: Does the G-Series support sanitary applications?
A: Yes, the hygienic option features a cleanable, self-draining design that meets 3-A, EHEDG, and ASME BPE standards.
Q: Can I verify the meter's health without stopping my process?
A: Absolutely. The G-Series includes Smart Meter Verification (SMV), which provides real-time and in-process measurement integrity assurance.
Q: What line sizes are available for the G-Series?
A: The series covers a broad range of line sizes from 1/4" (DN6) to 3" (DN80).
