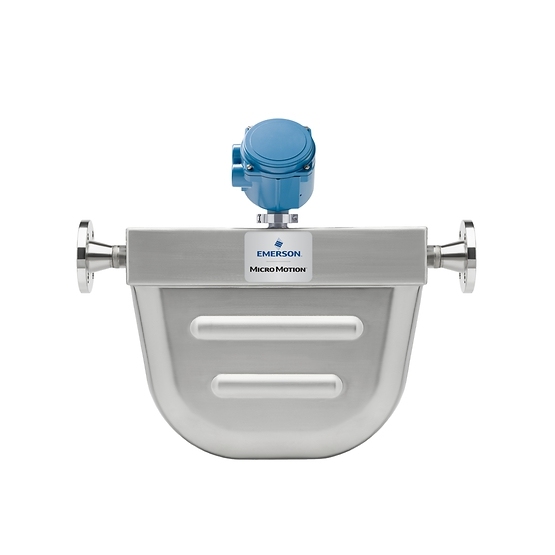

The Micro Motion F200S (DN50) is a 2-inch Coriolis flow meter engineered for applications that demand high accuracy and repeatable performance without compromising on space. Constructed from 316L Stainless Steel, the F200S is renowned for its compact, drainable design, which ensures minimal product residue and easier cleaning in diverse industrial environments.
Available through
| Feature | Performance Data |
| Nominal Line Size | 2 Inch (DN50) |
| Wetted Material | 316L Stainless Steel (Optional Nickel Alloy C22) |
| Mass Flow Accuracy (Liq) | Standard: ±0.20% |
| Mass Flow Repeatability | ±0.05% of rate |
| Density Accuracy (Liq) | Up to ±0.0005 $g/cm^3$ (0.5 $kg/m^3$) |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Gas Mass Flow Accuracy | ±0.5% of rate |
| Trade Approvals | MID OIML R 117, NTEP, Measurement Canada |
Superior Cleanability & Drainage: The F-Series geometry is specifically designed to be self-draining in vertical orientations. This reduces potential for product cross-contamination and makes it ideal for processes requiring frequent cleaning or product change-overs.
Fiscal-Grade Accuracy: Certified for Custody Transfer by global agencies (MID, OIML, NTEP). With optional accuracy up to ±0.10%, the F200S ensures financial transparency and trust in loading/unloading applications.
Smart Meter Verification (SMV): Eliminate unnecessary maintenance. SMV allows you to verify the structural health and calibration integrity of the F200S in real-time, while the process is running, without breaking the seal or stopping the flow.
Unrivaled MVD Technology: Built-in digital signal processing minimizes noise and delivers incredibly fast response times, critical for precise high-speed batching and filling operations.
Extensive Diagnostics: Includes an on-board historian and logging for process tracking. Monitor meter health and process upsets with a clear digital audit trail.
Universal Certifications: Carrying ATEX, IECEx, NEPSI, and UL approvals, the F200S is ready for safe deployment in hazardous areas (Class 1 Div 1 / Zone 1) worldwide.
Multivariable Insight: Replaces separate sensors for flow, density, and temperature, reducing leak points and installation costs.
Transmitter Compatibility: Works seamlessly with the Emerson 5700 and 2400 transmitters, supporting HART, Modbus, PROFINET, and EtherNet/IP.
Marine Approved: Carry multiple global marine certifications, making the F200S a trusted choice for vessel-based fuel and chemical monitoring.
The Challenge: A chemical plant needed a 2-inch flow meter for batching high-value solvents. The meter had to be fully drainable to prevent residue buildup and provide custody-transfer grade accuracy for billing.
The Hanyu Solution: The plant installed the Micro Motion F200S from
The Result: The 316L SS self-draining tubes ensured zero product carry-over between batches. The ±0.10% accuracy provided the exact totals needed for billing.
The Impact: Batching errors were reduced by 15%, and the facility saved significant time on cleaning cycles, resulting in a 20% increase in production uptime.
Q: Can the F200S handle corrosive fluids?
A: While 316L Stainless Steel is standard, the F200S is also available in Nickel Alloy C22 for applications involving aggressive acids or oxidizing chlorides.
Q: Is the F200S suitable for high-viscosity fluids?
A: Yes. The robust sensor design and high sensitivity make it excellent for measuring viscous liquids, slurries, and non-Newtonian fluids with high repeatability.
Q: What is the benefit of the F-Series over the R-Series?
A: The F-Series (like the F200S) offers significantly higher accuracy (up to ±0.10% vs ±0.50%), better density measurement, and more advanced diagnostics (SMV) compared to the general-purpose R-Series.
