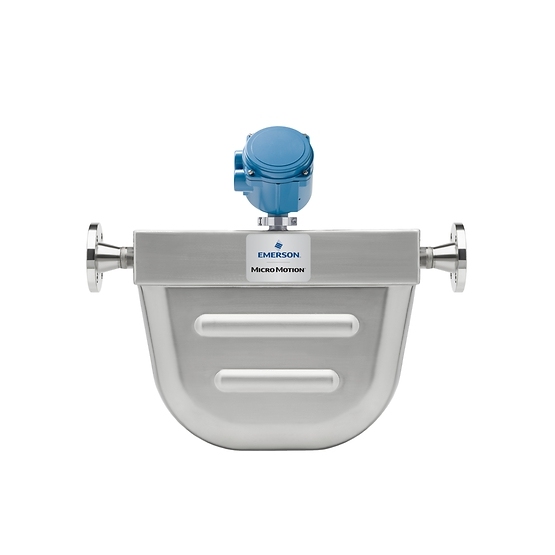

The Micro Motion F200H is a robust 2-inch (DN50) Coriolis meter engineered for the most demanding chemical processes. Constructed with Nickel Alloy C22 wetted components, this F-Series sensor is specifically designed to handle aggressive fluids that would compromise standard stainless steel. Its compact and drainable design ensures it fits into tight piping skids while providing the reliable, repeatable, and highly accurate mass flow and density measurement required for industrial process control.
Extreme Corrosion Resistance: Nickel Alloy C22 wetted parts provide superior protection against a wide array of aggressive chemicals and corrosive media.
Compact & Drainable Design: The F-Series geometry allows for complete fluid drainage and a smaller installation footprint without sacrificing performance.
High-Precision Options: Achieve liquid mass flow accuracy of ±0.10% and density accuracy up to ±0.0005 g/cm³ (optional).
Advanced Diagnostics: Equipped with an on-board historian and logging for extensive process tracking and meter health diagnostics.
Smart Meter Verification (SMV): Verify your meter’s integrity and calibration in real-time, in-process, ensuring safety in corrosive environments without breaking the seal.
Unmatched MVD Technology: Built with Multi-Variable Digital signal processing for the fastest response rates in batching and high-speed process applications.
| Feature | Specification Details |
| Line Size | 2 Inch (DN50) |
| Wetted Material | Nickel Alloy C22 |
| Liquid Mass Flow Accuracy | ±0.20% (Std) / ±0.10% (Opt) |
| Liquid Density Accuracy | ±0.002 g/cm³ (Std) / ±0.0005 g/cm³ (Opt) |
| Gas Mass Flow Accuracy | ±0.5% of rate |
| Max Working Pressure | 2,160 psig (149 barg) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Certifications | UL, CSA, IECEx, NEPSI, ATEX, NAMUR |
Q1: What industries typically use the F200H with Nickel Alloy C22?
A1: It is widely used in chemical processing, oil and gas, and wastewater treatment where chloride-rich fluids or strong acids require a more durable material than 316L stainless steel.
Q2: Does the F200H support Custody Transfer?
A2: Yes. The F200H holds multiple global custody transfer approvals, including MID OIML R 117 and NTEP, making it suitable for high-accuracy fiscal billing.
Q3: Can this meter be used in high-vibration areas?
A3: Absolutely. The F-Series is designed with high immunity to process and environmental effects, ensuring stable measurement even in noisy industrial settings.
Q4: Is the F200H easy to clean between batches?
A4: Yes. Its drainable design prevents fluid holdup, allowing for faster change-overs and more effective cleaning-in-place (CIP) procedures.
