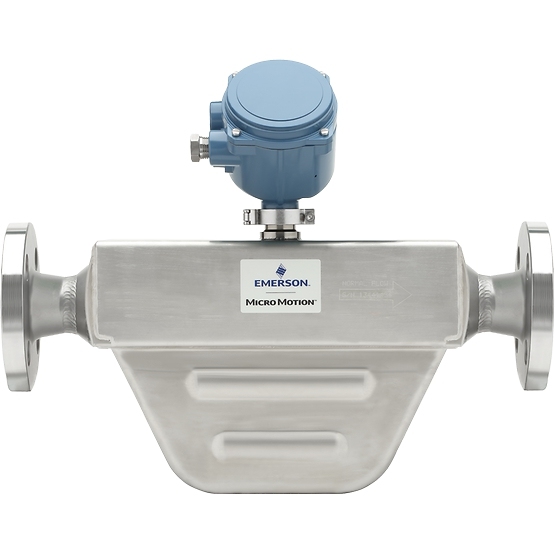

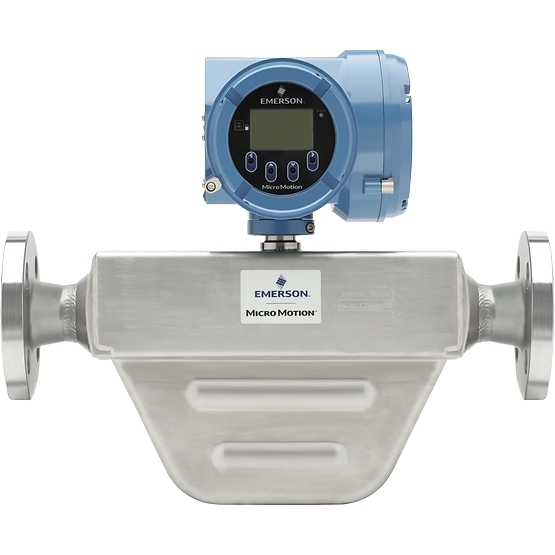

The Micro Motion F150S is a premier 316L Stainless Steel Coriolis flow meter designed for applications that demand high reliability, repeatability, and a compact footprint. Engineered with a unique drainable sensor geometry, the F150S is the ideal choice for process industries where zero fluid entrapment and rapid batching response are critical for operational success.
Compact, Drainable Design: The F-Series sensor shape ensures complete self-drainage, making it perfect for CIP/SIP cycles and high-purity chemical processes.
Custody Transfer Approved: Fully certified by MID OIML R 117, NTEP, and Measurement Canada, providing legal-metrology-grade measurement for high-value fluid transactions.
Unmatched MVD Technology: Powered by Micro Motion’s Multivariable Digital (MVD) transmitter technology, the F150S offers the fastest response rates for accurate batching and process stability.
Smart Meter Verification (SMV): Gain real-time assurance of your meter’s health. SMV checks the sensor and electronics in under 90 seconds without interrupting your flow.
Extreme Durability: Featuring 316L Stainless Steel construction and laser-etched tagging for long-term readability in harsh environments.
| Feature | Specification |
| Nominal Line Size | 1.5 Inch (DN40) |
| Liquid Mass Accuracy | Up to ±0.10% of rate (optional) |
| Liquid Repeatability | ±0.050% of rate |
| Max Working Pressure | 1,450 psig (100 barg) |
| Wetted Material | 316L Stainless Steel |
| Gas Mass Accuracy | ±0.5% of rate |
Q1: What is the highest accuracy available for the F150S? A: While the standard accuracy is ±0.20%, the Micro Motion F150S can be optionally configured to achieve a high-performance liquid mass flow accuracy of ±0.10% of rate.
Q2: Is the F150S suitable for sanitary environments? A: Yes. The F150S features a compact, self-draining design that prevents fluid entrapment. It is widely used in SIP/CIP and sanitary environments where 3-A or EHEDG compliance is a priority.
Q3: Can the F150S be used for billing and legal metrology? A: Absolutely. The F150S holds world-class custody transfer approvals including MID OIML R 117, NTEP, and Measurement Canada, making it reliable for fiscal transactions.
Q4: How does the MVD technology improve performance? A: Micro Motion’s MVD (Multivariable Digital) technology enables the fastest response times in the industry, which is essential for accurate measurement during high-speed batching and intermittent process cycles.
