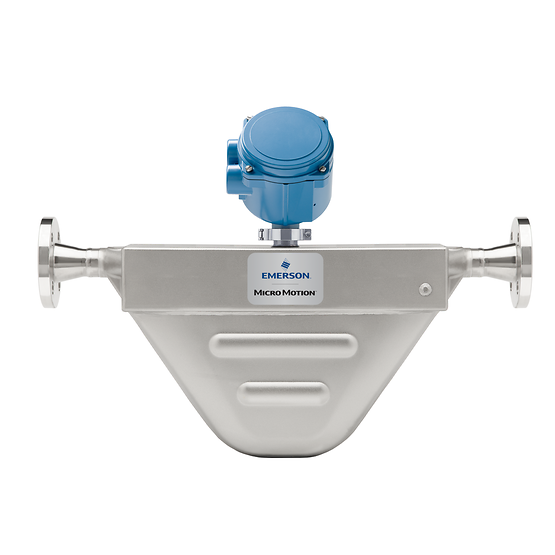

The Micro Motion F100S (DN25) is the industry’s trusted solution for 1-inch line sizes, offering a perfect balance between high-end performance and practical industrial design. Constructed from 316L Stainless Steel, the F100S is specifically engineered for applications that require a compact, drainable geometry to prevent fluid entrapment and ensure process purity.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1 Inch (DN25) |
| Wetted Material | 316L Stainless Steel (Nickel Alloy C22 Optional) |
| Liquid Mass Flow Accuracy | Standard: ±0.20% |
| Liquid Density Accuracy | Standard: ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Gas Mass Flow Accuracy | ±0.50% of rate |
| Process Temperature | -400°F to 662°F (-240°C to 350°C) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, NEPSI, CSA, UL |
Compact & Drainable Geometry: The smooth, curved tubes allow for complete gravity-driven drainage. This minimizes product loss and makes the F100S ideal for processes requiring frequent Cleaning-In-Place (CIP).
MVD™ Technology for Fast Response: Equipped with Micro Motion’s patented MVD technology, the F100S provides high-speed digital signal processing, perfect for short-duration batching and filling applications.
Global Custody Transfer Compliance: With approvals from MID (OIML R 117), NTEP, and Measurement Canada, the F100S is a legally certified solution for fiscal billing and high-value fluid transfer.
Smart Meter Verification (SMV): Verify the health and calibration of your meter in-situ, in under 90 seconds. SMV ensures the F100S is operating within specs without having to stop the flow.
Extensive Diagnostics: Features an on-board historian and detailed diagnostic logging, allowing for real-time tracking of process upsets and simplified troubleshooting.
Flexible Transmitter Options: Pairs seamlessly with Emerson 5700, 2400, and 1700 transmitters to provide advanced data logging and graphical diagnostics.
Digital Protocols: Full compatibility with HART, Modbus, PROFINET, and EtherNet/IP.
Hazardous Area Ready: Fully certified for global safety standards (Class 1 Div 1/2, ATEX Zone 0/1), ensuring reliable operation in explosive atmospheres.
The Challenge: A chemical distributor needed a 1-inch flow meter for a tanker loading station. The meter had to be accurate enough for billing purposes and fully drainable to prevent contamination between different chemical types.
The Hanyu Solution: The facility deployed the Micro Motion F100S via
The Result: The F100S achieved a stable ±0.10% liquid mass flow accuracy, meeting all fiscal transfer requirements. Its drainable design allowed for rapid flushing between product changes.
The Impact: Loading time was reduced by 20%, and billing disputes were virtually eliminated. The SMV feature provided an audit trail for regulatory compliance without removing the meter.
Q: When should I choose the F100S over the ELITE CMF100?
A: The F100S is the preferred choice when you need a more compact, cost-effective solution with excellent drainability. While the ELITE series offers higher absolute precision (±0.05%), the F100S is the "all-rounder" for standard industrial batching and process monitoring.
Q: Is the F100S suitable for gas applications?
A: Yes. It provides robust gas measurement with a stable mass flow accuracy of ±0.50%.
Q: Can it be used with corrosive fluids?
A: Yes. While 316L Stainless Steel is the standard, the F100S is also available in Nickel Alloy C22 for superior resistance to aggressive chemicals and acids.
Q4: How does Hanyu Zhilian support the delivery of these industrial sensors?
A: We offer 100% original factory-new equipment with full Material Traceability Reports (MTRs) and original calibration certificates. All project data remains strictly confidential per our Privacy Policy.
