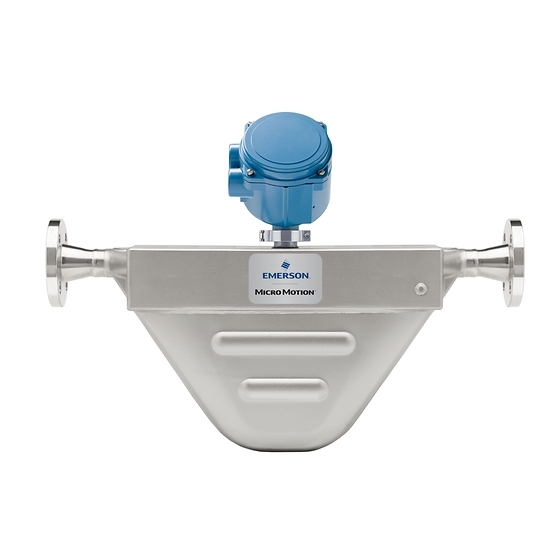

The Micro Motion F100P (DN25) is engineered for applications where standard meters reach their limits. Combining the chemical resilience of Nickel Alloy C22 (Hastelloy equivalent) with a massive 6,250 psig (431 barg) pressure rating, the F100P delivers highly reliable and repeatable measurements for the most aggressive industrial fluids.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1 Inch (DN25) |
| Wetted Material | Nickel Alloy C22 (Extreme Corrosion Resistance) |
| Max. Working Pressure | 6,250 psig (431 barg) |
| Mass Flow Accuracy (Liq) | Standard: ±0.20% |
| Mass Flow Repeatability | ±0.05% of rate (optional) |
| Density Accuracy (Liq) | ±0.002 $g/cm^3$ (2.0 $kg/m^3$) |
| Gas Mass Flow Accuracy | ±0.5% of rate |
| Approvals | ATEX, IECEx, CSA, Marine (Multiple Global Certs) |
Ultra-High Pressure Reliability: Engineered with a specialized 1-inch sensor body that safely handles pressures up to 431 barg, perfect for high-head injection pumps and deepwater subsea applications.
Nickel Alloy C22 Excellence: Provides an impenetrable barrier against aggressive acids and oxidizing chlorides, ensuring a significantly longer service life than stainless steel in corrosive environments.
Compact, Self-Draining Design: The F-Series geometry allows for full drainage in vertical installations, preventing product cross-contamination and simplifying cleaning protocols on high-pressure skids.
Smart Meter Verification (SMV): High-pressure lines are expensive to shut down. SMV allows you to verify the F100P's structural health and calibration integrity in real-time, providing an audit trail without stopping the process.
Global Marine Certification: Carrying approvals from the U.S., U.K., Norway, France, and Japan, the F100P is the trusted standard for offshore production and maritime fuel/chemical monitoring.
Superior MVD Technology: Integrated Multivariable Digital (MVD) signal processing provides the industry's fastest response time, critical for precise high-pressure batching and process control.
Multivariable Output: Measures mass flow, volume flow, density, and temperature simultaneously from a single 1-inch high-pressure port.
Advanced Transmitter Compatibility: Pairs with Emerson’s 5700 and 2400 transmitters, supporting high-speed HART, Modbus, PROFINET, and EtherNet/IP communications.
Robust Diagnostics: Features an on-board historian and data logging to track process upsets and monitor meter performance over time.
The Challenge: An offshore platform required a flow meter to measure highly corrosive corrosion inhibitors injected at 350 barg. Standard meters suffered from pressure fatigue and chemical attack.
The Hanyu Solution: The operator upgraded to the Micro Motion F100P from
The Result: The Nickel Alloy C22 sensor handled the high-pressure corrosive environment with zero maintenance requirements.
The Impact: Maintenance intervals were extended by 400%, and the ±0.10% accuracy ensured optimized chemical usage, saving the platform thousands in operational costs.
Q: What is the main advantage of the "P" designation in F100P?
A: The "P" indicates a High-Pressure rating. While standard F-Series meters handle up to 1,450 psig, the F100P is specifically reinforced to safely operate up to 6,250 psig.
Q: Is the F100P suitable for high-pressure gas measurement?
A: Yes. With its high-pressure rating and ±0.5% gas accuracy, it is widely used for high-pressure gas dosing, hydrogen applications, and specialty gas distribution.
Q: Can it be used in marine environments?
A: Absolutely. The F100P is extensively certified by major global marine agencies, making it a standard choice for vessel and platform service.
