High-Precision Measurement in Nickel Alloy C22 for Harsh Environments

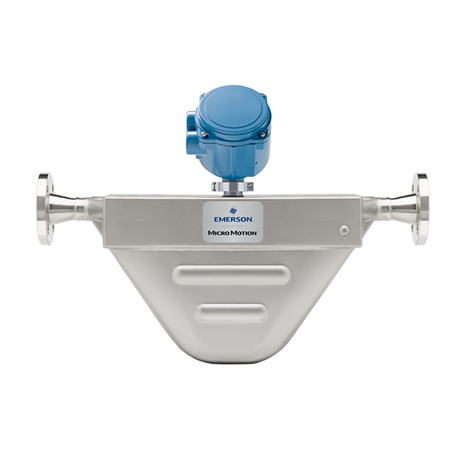

The Micro Motion F100H is a premium F-Series Coriolis meter designed for applications demanding both extreme accuracy and superior material integrity. Constructed with Nickel Alloy C22, this 1-inch (DN25) sensor provides a robust, drainable solution for corrosive chemical processing and high-pressure environments.
| Feature | Performance Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | Nickel Alloy C22 (Hastelloy equivalent) |
| Mass Flow Accuracy (Liquid) | Up to ±0.10% of rate (Optional) |
| Density Accuracy (Liquid) | Up to ±0.001 g/cm³ (1.0 kg/m³) |
| Max Working Pressure | 2,160 psig (149 barg) |
| Gas Flow Accuracy | ±0.5% of rate |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
Superior Corrosion Resistance: The C22 Nickel Alloy construction ensures longevity in aggressive chemical applications where 316L stainless steel might fail.
Compact & Self-Draining: The F-Series design is optimized for applications requiring a small footprint and easy drainage to prevent fluid buildup or contamination.
Smart Meter Verification (SMV): Gain real-time assurance of meter integrity without interrupting your process, reducing maintenance costs and downtime.
Advanced MVD Technology: Equipped with Multi-Variable Digital (MVD) transmitter technology for the fastest response rates and precise batching.
Global Compliance: Fully certified for hazardous areas (ATEX, IECEx, CSA, Class 1 Div 1) and custody transfer (MID OIML R 117, NTEP).
The Micro Motion F100H is the industry standard for Custody Transfer, Batching, and Process Control in:
Chemical & Petrochemical Processing
Oil and Gas
Pharmaceutical Manufacturing
Certifications Include:
Hazardous Area: UL, CSA (Class 1 Div 1 & 2), ATEX, IECEx, NEPSI.
Ingress Protection: IP66/67.
Compliance: EMC effects and NAMUR standards.
Q1: What is the maximum pressure rating for the Micro Motion F100H? A: The F100H sensor has a maximum working pressure of 2,160 psig (149 barg), making it suitable for high-pressure industrial processes.
Q2: Why choose a 1-inch (DN25) F-Series meter over other models? A: The F-Series is specifically designed for a compact and drainable footprint. It is the preferred choice for applications where space is limited and fluid trapped in the meter must be minimized.
Q3: Is the F100H suitable for gas flow measurement? A: Yes. While optimized for liquids, the F100H provides high-reliability gas measurement with a mass flow accuracy of ±0.5% of rate.
Q4: How does Smart Meter Verification (SMV) benefit my operation? A: SMV allows you to check the health and calibration of your meter in less than 90 seconds without stopping the flow, ensuring measurement integrity and reducing manual inspection costs.
