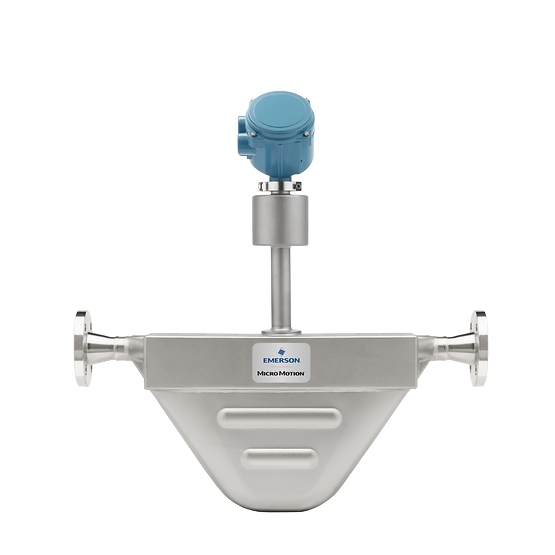

The Micro Motion F100B is a premier 1-inch (DN25) Coriolis meter engineered for the intersection of extreme heat and aggressive chemistry. Constructed with Nickel Alloy C22 wetted components, this F-Series sensor is designed for high-temperature applications that require a compact, drainable design. It provides highly reliable and robust measurement of mass flow, volume flow, and density, making it a critical asset for chemical processing plants and specialized industrial skids.
Extreme Corrosion Resistance: Nickel Alloy C22 wetted parts offer superior protection against pitting, crevice corrosion, and stress corrosion cracking in aggressive environments.
High-Temperature Performance: Specifically engineered to provide stable and repeatable measurement in processes with elevated thermal profiles.
Compact & Drainable Design: The F-Series architecture facilitates easy installation in tight spaces and ensures full drainage to prevent product holdup or contamination.
Multi-Variable Precision: Simultaneously capture mass flow, density, and temperature with accuracy levels up to ±0.10% for liquids.
Smart Meter Verification (SMV): Verify meter health and tube integrity in-process and in real-time, ensuring safety in hazardous corrosive services without process interruption.
Advanced MVD Technology: Built with Multi-Variable Digital signal processing for industry-leading response rates in fast-batching and process control.
| Feature | Specification Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | Nickel Alloy C22 |
| Configuration | High Temperature |
| Liquid Mass Accuracy | ±0.20% (Std) / ±0.10% (Opt) |
| Liquid Density Accuracy | Up to ±0.001 g/cm³ (Optional) |
| Max Working Pressure | 2,160 psig (149 barg) |
| Gas Mass Accuracy | ±0.5% of rate |
| Hazardous Certifications | UL, CSA, IECEx, NEPSI, ATEX, NAMUR |
Q1: What are the typical applications for the F100B in Nickel Alloy C22?
A1: It is ideal for measuring hot hydrochloric acid, sulfuric acid, or brine solutions where thermal expansion and chemical corrosion are simultaneous challenges.
Q2: Does the F100B handle custody transfer?
A2: Yes. The F100B holds global custody transfer approvals including MID OIML R 117, NTEP, and Measurement Canada, making it suitable for legal-for-trade applications.
Q3: How does the on-board historian benefit my facility?
A3: The on-board historian and logging capabilities allow for extensive process tracking and diagnostics, helping you analyze process upsets and verify measurement stability over time.
Q4: Is it easy to clean?
A4: Absolutely. The self-draining design is specifically intended to prevent "dead spots," allowing for efficient cleaning-in-place (CIP) and reducing waste during product change-overs.
