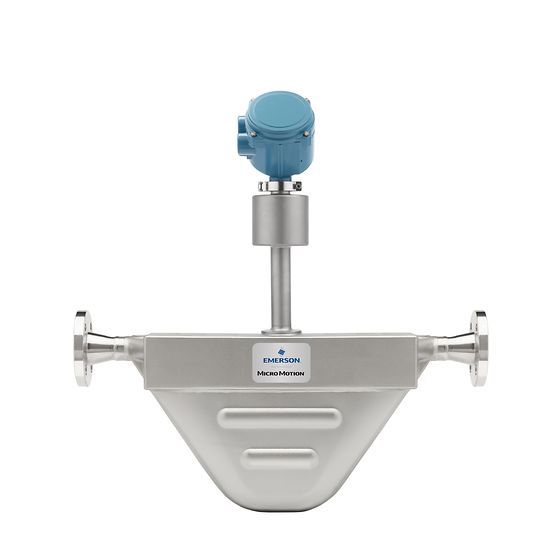

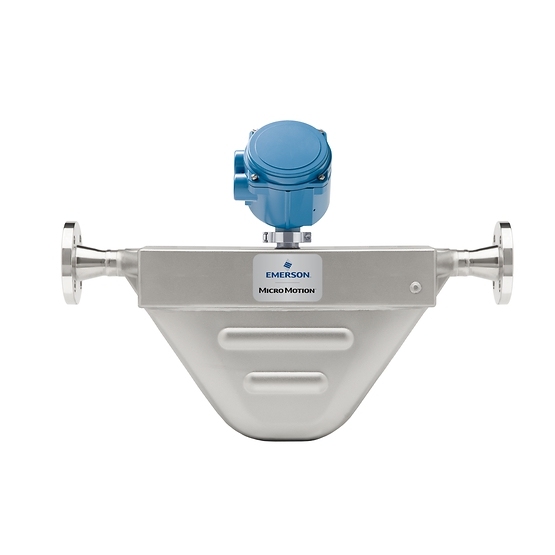

The Micro Motion F100A is a high-performance 1-inch (DN25) Coriolis meter designed for high-temperature process environments. Constructed from robust 316L Stainless Steel, the F100A offers a compact and drainable design, making it ideal for applications where space is limited and measurement reliability is critical. It delivers highly accurate mass flow, volume flow, and density data, serving as a versatile solution for general process control and fiscal transfer.
Compact & Drainable Design: The F-Series sensor shape ensures complete fluid drainage, reducing the risk of cross-contamination and simplifying line cleaning.
High-Temperature Capability: Engineered to deliver stable and repeatable measurements even in processes with significant thermal fluctuations.
Superior Measurement Accuracy: Features optional precision levels up to ±0.10% for liquids and ±0.5% for gases.
Smart Meter Verification (SMV): Real-time, in-process diagnostics allow you to verify the meter's health and calibration without stopping the flow.
Fast Response MVD Technology: Built with Multi-Variable Digital (MVD) transmitter technology to provide the fastest response rates for batching and process control.
Global Safety Certifications: Fully certified by ATEX, IECEx, CSA, and NEPSI for use in hazardous areas, with SIL 2 and SIL 3 capabilities.
| Feature | Specification Details |
| Line Size | 1 Inch (DN25) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Accuracy | ±0.20% (Std) / ±0.15% & ±0.10% (Opt) |
| Liquid Repeatability | ±0.050% of rate |
| Density Accuracy | ±0.002 g/cm³ (Std) / ±0.001 g/cm³ (Opt) |
| Max Working Pressure | 1,450 psig (100 barg) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Certifications | UL, CSA, ATEX, IECEx, NEPSI |
Q1: Is the F100A self-draining?
A1: Yes. The F-Series is specifically designed to be self-draining when mounted in the correct orientation, which is essential for hygienic processes or lines that are frequently flushed.
Q2: What are the benefits of the on-board historian?
A2: The on-board historian and logging features allow for extensive process tracking and diagnostics, helping you troubleshoot process upsets and verify measurement trends over time.
Q3: Can the F100A handle corrosive fluids?
A3: While this model is 316L Stainless Steel, the F-Series is also available in Nickel Alloy C-22 for more aggressive chemical applications.
Q4: How does the F100A improve batching accuracy?
A4: With unmatched MVD transmitter technology, the F100A provides high-speed digital signal processing, ensuring the fastest response times for accurate batch start and stop control.
