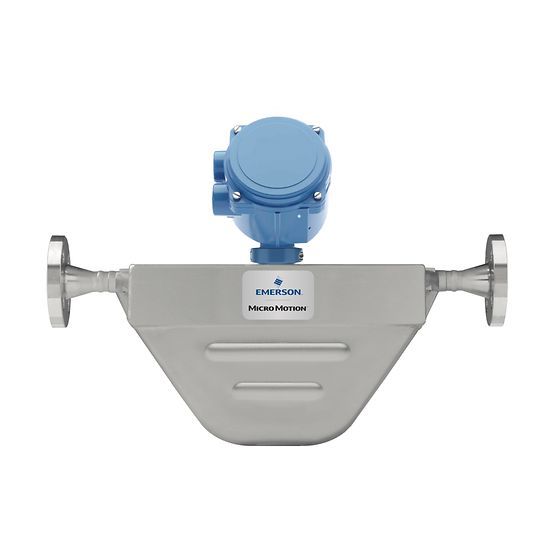

The Micro Motion F050S (DN15) is a 1/2-inch Coriolis flow meter designed for users who demand high reliability and repeatable measurement in a robust, industrial package. Constructed from 316L Stainless Steel, the F050S is celebrated for its compact and drainable design, making it highly effective for applications where space is limited and fluid entrapment must be avoided.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel (Nickel Alloy C22 Optional) |
| Design Feature | Compact & Fully Drainable |
| Liquid Mass Flow Accuracy | Standard: ±0.20% |
| Liquid Density Accuracy | Standard: ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Gas Mass Flow Accuracy | ±0.50% of rate |
| Certifications | CSA, ATEX, IECEx, NEPSI, SIL, Custody Transfer (MID/NTEP) |
Superior Drainability: The smooth, curved tube design of the F-Series ensures fluids can be fully drained. This is essential for preventing product cross-contamination and simplifying Cleaning-In-Place (CIP) routines.
MVD™ Technology: Driven by Micro Motion’s Multivariable Digital technology, the F050S provides the fastest response rates, making it the premier choice for high-speed batching and filling.
Smart Meter Verification (SMV): Gain real-time confidence in your meter’s health. SMV checks the internal sensor integrity and electronics in under 90 seconds, without interrupting your process.
Fiscal-Grade Reliability: With approvals from MID, NTEP, and Measurement Canada, the F050S is fully certified for Custody Transfer, ensuring accurate and legally defensible billing.
Advanced Diagnostics: Includes on-board historians and logging to track process upsets and meter performance over time, reducing troubleshooting hours.
Flexible Transmitter Pairing: Compatible with the Emerson 5700, 2400, and 1700 transmitters to fit any integration requirement.
Seamless Communication: Native support for HART, Modbus, PROFINET, and EtherNet/IP.
Global Safety Compliance: Certified for Class 1 Div 1 & 2, and Zone 0/1/2 environments, ensuring safety across all global industrial sites.
The Challenge: A chemical manufacturer needed a compact flow meter to manage the batching of expensive resins in a DN15 line. The meter had to be fully drainable to allow for daily material changes without residual buildup.
The Hanyu Solution: The customer integrated the Micro Motion F050S via
The Result: The F050S provided a stable ±0.10% accuracy, while the drainable design reduced flushing time by 30%.
The Impact: Product waste was minimized, and the fast response of the MVD transmitter improved batch consistency by 12%, leading to higher end-product quality.
Q: What is the main difference between the F-Series and ELITE (CMF) series?
A: While the ELITE series offers the ultimate precision (±0.05%), the F-Series provides a more compact, drainable design with excellent reliability (up to ±0.10%), making it ideal for standard industrial processes and batching.
Q: Can the F050S handle gas measurement?
A: Yes. It provides highly repeatable gas mass flow measurement with an accuracy of ±0.50%.
Q: Is the F050S suitable for hygienic applications?
A: Yes, the 316L Stainless Steel version with its drainable geometry is frequently used in food, beverage, and life science applications where cleanability is a priority.
Q4: How does Hanyu Zhilian ensure the authenticity of the sensors?
A: We provide 100% original factory units, complete with original calibration certificates and Material Traceability Reports (MTRs). All project data is handled with strict confidentiality per our Privacy Policy.
