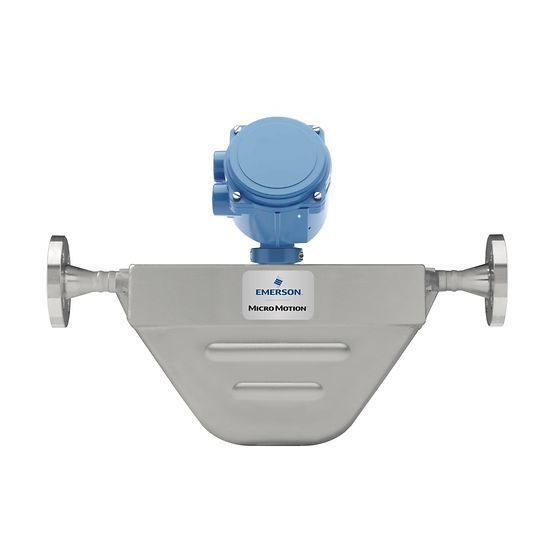

The Micro Motion F050P (DN15) is a 1/2-inch Coriolis meter engineered to bridge the gap between high-accuracy measurement and extreme operating pressures. Capable of handling up to 5,000 psig (344 barg), the F050P utilizes a robust 316L Stainless Steel construction to deliver repeatable mass flow and density data in the most challenging environments.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel (Nickel Alloy C22 optional) |
| Max. Working Pressure | 5,000 psig (344 barg) |
| Liquid Mass Flow Accuracy | Standard: ±0.20% | Optional: ±0.10% |
| Mass Flow Repeatability | ±0.050% of rate |
| Density Accuracy (Liquid) | Standard: ±0.002 $g/cm^3$ | Optional: ±0.001 $$g/cm^$ |
| Gas Mass Flow Accuracy | ±0.5% of rate |
| Safety Certifications | ATEX, IECEx, NEPSI, CSA, SIL Certified |
High-Pressure Specialist: Rated for 344 barg, the F050P is designed for safety and longevity in high-pressure dosing and hydraulic power units where standard meters fail.
Fully Drainable Geometry: The compact F-Series design allows for complete self-draining, reducing maintenance time and preventing cross-contamination in batch-shifting processes.
Enhanced Safety Features: Specifically available with a rupture disk or purge fitting case, offering a critical second line of defense for personnel and equipment in high-pressure service.
Smart Meter Verification (SMV): High-pressure lines are often difficult to access. SMV allows you to verify the sensor's health and calibration in-situ without breaking the high-pressure seal, ensuring continuous compliance.
Custody Transfer Grade: Carries premium global approvals (MID OIML R 117, NTEP, Measurement Canada), making it ready for high-accuracy fiscal billing of high-pressure gases and liquids.
Advanced MVD Technology: Integrated with Multivariable Digital (MVD) signal processing to deliver the fastest response times and clean data, even in processes with high pressure-induced noise.
Multivariable Output: One compact device provides real-time mass flow, volume flow, density, and temperature.
Process Tracking: Extensive on-board diagnostics with a historian and logging capabilities help identify and troubleshoot process upsets instantly.
Global Compatibility: Fully compatible with Emerson’s 5700, 2400, and 1700 transmitters, supporting HART, Modbus, PROFINET, and EtherNet/IP.
The Challenge: A chemical facility required a 1/2-inch meter to batch a high-pressure reactant at 4,000 psi. Previous volumetric meters suffered from frequent seal failures and were difficult to drain completely between batches.
The Hanyu Solution: The plant upgraded to the Micro Motion F050P from
The Result: The F050P's 316L SS construction and 5,000 psi rating provided absolute safety. The self-draining design ensured zero product carryover.
The Impact: Batch cycle time was reduced by 20% due to faster cleaning, and the facility eliminated the risk of hazardous leaks associated with mechanical seals.
Q: What makes the F050P "High Pressure" compared to the standard F-Series?
A: The F050P is specifically engineered with reinforced tube walls and high-integrity 316L Stainless Steel fittings, allowing it to operate safely at pressures up to 5,000 psig (344 barg), whereas standard models are typically rated for much lower industrial pressures.
Q: Why is the "Drainable Design" important for high-pressure chemical injection?
A: In high-pressure dosing, fluid entrapment can lead to safe-start issues or cross-contamination between batches. The F050P’s unique F-Series geometry allows the sensor to be fully self-draining when installed vertically, ensuring no hazardous chemicals remain in the meter during maintenance or fluid changeovers.
Q: Can I use the F050P for Fiscal Measurement or Custody Transfer?
A: Yes. The F050P carries a wide range of global metrology approvals, including MID OIML R 117, NTEP, and Measurement Canada. Its ability to maintain high accuracy (±0.10%) under high-pressure conditions makes it a top choice for fiscal billing of industrial gases and liquids.
Q: What safety features are available for hazardous high-pressure service?
A: For added site safety, the F050P can be equipped with a rupture disk or a purge fitting case. These features provide a secondary containment barrier and a safe vent path in the unlikely event of a primary sensor tube breach, protecting both personnel and the environment.
Q: Does the F050P support modern digital plant architectures?
A: Absolutely. When paired with the 5700 transmitter, the F050P supports a full suite of digital protocols, including HART, Modbus, PROFINET, and EtherNet/IP, providing real-time access to flow, density, and advanced meter diagnostics.
Q4: Why source the F050P from Hanyu Zhilian?
A: We provide 100% original and brand-new Emerson products, each accompanied by a comprehensive documentation package including Material Traceability Reports (MTRs), High-Pressure Test Certificates, and original Factory Calibration Certificates. For safety-critical high-pressure equipment like the F050P, we ensure the highest standards of protective packaging and dedicated technical support to guarantee safe arrival and optimal performance.
