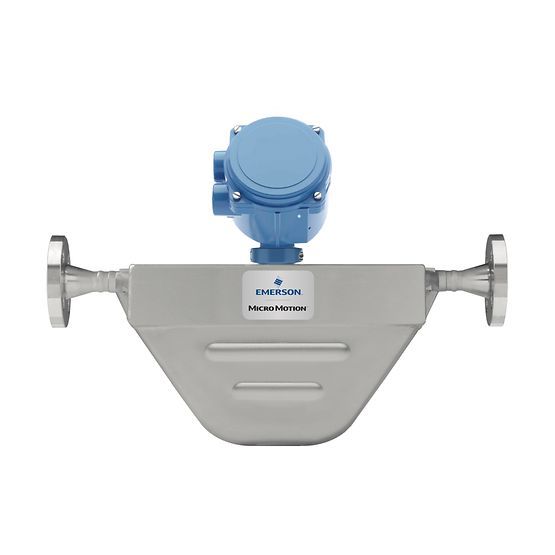

The Micro Motion F050H is a premium 1/2-inch (DN15) Coriolis meter engineered for reliability in the most demanding industrial processes. Featuring Nickel Alloy C22 wetted parts, this sensor provides ultimate protection against aggressive chemicals that would degrade standard stainless steel. Designed with a compact, self-draining geometry, the F050H delivers high-precision mass flow and density measurement with an available liquid accuracy of up to ±0.10%.
Superior Corrosion Resistance: Nickel Alloy C22 construction offers immunity to a wide range of aggressive media, ensuring long-term sensor integrity.
Highly Accurate & Repeatable: Provides liquid mass flow accuracy from ±0.20% down to ±0.10% with optional premium calibration.
Smart Meter Verification (SMV): Real-time, in-process integrity assurance allows you to verify meter health and tube integrity without stopping the process.
Advanced MVD Technology: Built on Multi-Variable Digital (MVD) technology for the fastest response rates and superior batching precision.
Custody Transfer Ready: Holds extensive global approvals, including MID OIML R 117, NTEP, and Measurement Canada, for fiscal measurement applications.
Extensive Diagnostics: Integrated on-board historian and logging for simplified troubleshooting and process tracking.
Robust Pressure Rating: Safely operates at process pressures up to 2,160 psig (149 barg).
| Feature | Details |
| Line Size | 1/2 Inch (DN15) |
| Wetted Material | Nickel Alloy C22 (Hastelloy Equivalent) |
| Liquid Mass Accuracy | ±0.20% (Standard) / ±0.10% (Optional) |
| Liquid Density Accuracy | Up to ±0.0005 g/cm³ (Optional) |
| Max Working Pressure | 2,160 psig (149 barg) |
| Approvals | CSA, IECEx, ATEX, NEPSI, NAMUR, SIL |
Q: When should I choose the F-Series over the ELITE series?
A: The F050H is ideal for general process control and high-value chemical dosing where you need ELITE-level reliability and C22 material but can operate with a standard 0.10% - 0.20% accuracy range at a better price point.
Q: Can the F050H handle gas measurement?
A: Yes, the F050H is highly capable of gas mass flow measurement with a standard accuracy of ±0.5% and repeatability of ±0.25%.
Q: Is it suitable for high-temperature applications?
A: Absolutely. The F-Series is known for its robust performance in varying temperature conditions, ensuring stable measurement even in challenging thermal environments.
