The Micro Motion F050A (DN15) provides highly reliable mass flow & density measurement in 316L SS. Compact, drainable design with high-temperature capability.

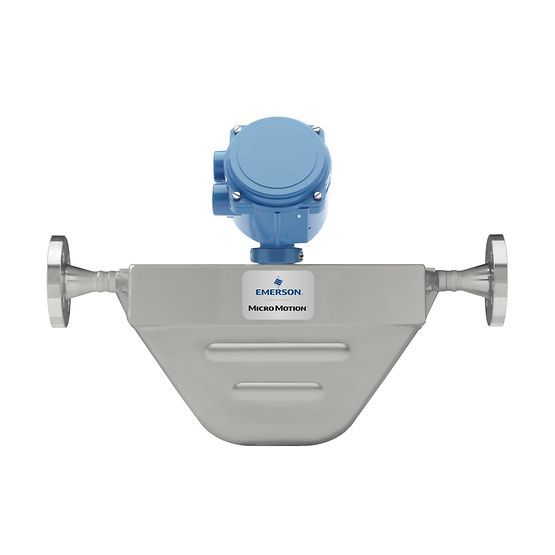

The Micro Motion F050A (DN15) is a 1/2-inch Coriolis meter engineered for excellence across a broad spectrum of industrial applications. Constructed from high-grade 316L Stainless Steel, this sensor is specifically designed for high-temperature environments where reliable, repeatable, and robust measurement is non-negotiable.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel (Nickel Alloy C22 optional) |
| Mass Flow Accuracy (Liq) | Standard: ±0.20% |
| Mass Flow Repeatability | ±0.050% of rate |
| Density Accuracy (Liq) | Standard: ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Process Temp. Range | Up to 662°F (350°C) |
| Safety Certifications | ATEX, IECEx, NEPSI, CSA, SIL Certified |
Optimized Drainable Design: The F-Series sensor geometry is engineered to be fully drainable when installed vertically. This unique feature prevents product cross-contamination and simplifies cleaning-in-place (CIP) procedures.

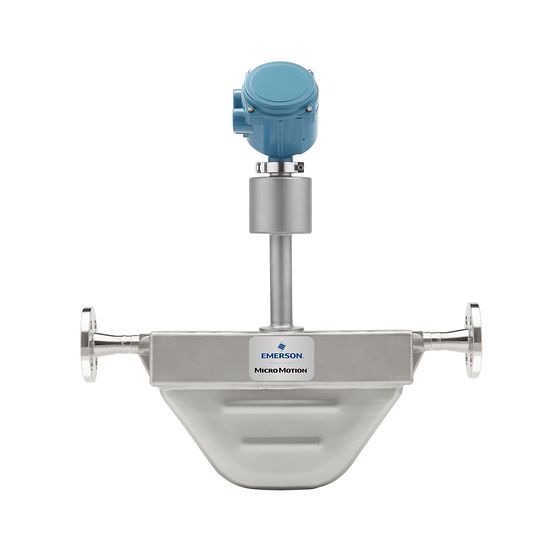

High-Temperature Performance: Built to withstand the rigors of thermal cycling, the F050A maintains accuracy up to 350°C, providing stable data in hot oil or steam-jacketed applications.
Smart Meter Verification (SMV): Verify the structural and electronic health of your sensor in real-time without stopping the process. SMV ensures the F050A remains within calibration, maximizing uptime and safety.
Custody Transfer Grade: Approved for fiscal measurement by global authorities (MID OIML R 117, NTEP, Measurement Canada), the F050A is a trusted solution for legal-for-trade billing and metrology.
Superior Batching Response: Powered by advanced MVD (Multivariable Digital) technology, the F050A delivers the industry's fastest response rates, ensuring absolute precision in high-speed batch and filling operations.
Comprehensive Process Diagnostics: Features an integrated historian and logging system, allowing for deep-dive tracking of process upsets and long-term meter health monitoring.
Multivariable Insight: Simultaneously measures mass flow, volume flow, density, and temperature from a single DN15 device.
Universal Transmitter Support: Fully compatible with Emerson’s 5700, 2400, or 1700 transmitters, supporting high-speed protocols including HART, Modbus, PROFINET, and EtherNet/IP.
Global Safety Compliance: Certified for hazardous areas worldwide, including ATEX, IECEx, and CSA Class 1 Div 1/Div 2 ratings.
The Challenge: A chemical manufacturer required a 1/2-inch meter to dose a viscous reactant at 220°C. Residual fluid in the previous meter caused cleaning delays and measurement drift.
The Hanyu Solution: The plant upgraded to the Micro Motion F050A from
The Result: The 316L SS sensor handled the heat with zero drift, and the ±0.10% accuracy ensured consistent reactant quality.
The Impact: The drainable design reduced cleaning time by 35%, and the plant eliminated product loss due to contamination, resulting in significant annual savings.
Q: Can the F050A be used for high-pressure gas dosing?
A: Yes. With a gas mass flow accuracy of ±0.5% and a pressure rating of 1,450 psig, it is excellent for industrial gas control and research applications.
Q: What is the benefit of 316L Stainless Steel for the F050A?
A: 316L provides a balanced combination of corrosion resistance, structural strength, and high-temperature durability for the majority of industrial fluids. For extremely corrosive acids, the Nickel Alloy C22 version is available.
Q: Why choose the F050A over the ELITE series?
A: While ELITE offers the highest absolute precision, the F050A (F-Series) is the preferred choice when a compact, fully drainable sensor is required for vertical installations or tight skid spaces.
