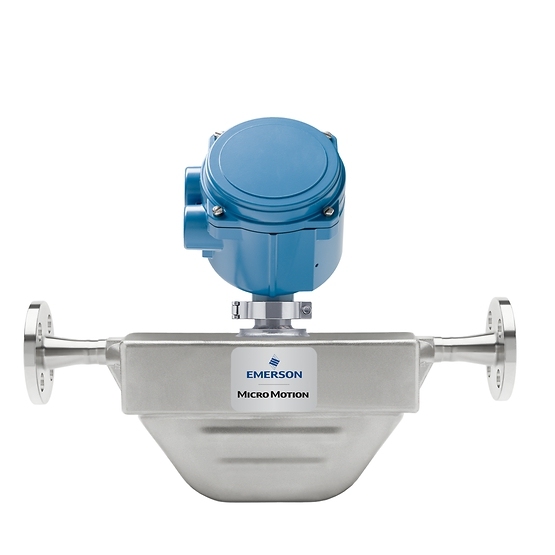

The Micro Motion F025P is a high-performance 1/4-inch (DN6) Coriolis meter built for high-pressure industrial service. Available in 316L Stainless Steel or Nickel Alloy C22, this F-Series sensor is defined by its compact, drainable footprint. It is engineered to provide highly reliable and repeatable mass flow and density measurements for micro-flow applications where operating pressures reach up to 2,320 psig (160 barg).
High-Pressure Reliability: Specifically designed to maintain measurement integrity at pressures up to 2,320 psig, making it a staple for chemical injection skids.
Compact & Drainable Design: The F-Series sensor geometry allows for easy installation in tight spaces and ensures full drainage to prevent fluid entrapment.
High Precision Performance: Offers exceptional liquid mass flow accuracy of ±0.10% (optional) and gas accuracy of ±0.5%.
MVD Technology: Features advanced Multi-Variable Digital (MVD) signal processing for the fastest response rates in batching and process control.
Smart Meter Verification (SMV): Includes on-board diagnostics to verify meter health and tube integrity in-process without removing the sensor from the line.
Enhanced Safety Options: Available with a rupture disk or purge fitting case for added protection in high-pressure or hazardous environments.
| Feature | Specification Details |
| Line Size | 1/4 Inch (DN6) |
| Wetted Material | 316L Stainless Steel / Nickel Alloy C22 |
| Liquid Mass Accuracy | ±0.20% (Std) / ±0.10% (Opt) |
| Liquid Repeatability | ±0.050% of rate |
| Gas Mass Accuracy | ±0.5% of rate |
| Density Accuracy | Up to ±0.001 g/cm³ (Optional) |
| Max Working Pressure | 2,320 psig (160 barg) |
| Hazardous Approvals | UL, CSA, IECEx, NEPSI, ATEX, NAMUR |
Q1: Why choose the F025P over an ELITE series meter for high pressure?
A1: The F025P offers a more compact and drainable design, which is often preferred for chemical injection skids where space is limited, while still providing high-pressure ratings up to 2,320 psig.
Q2: Can this meter be used with corrosive chemicals?
A2: Yes. By choosing the Nickel Alloy C22 wetted material option, the F025P provides superior resistance to aggressive chemicals and stress corrosion cracking.
Q3: How does the MVD transmitter technology benefit my process?
A3: MVD technology provides high-speed digital signal processing, which results in faster response times. This is critical for accurate batching and high-frequency process measurements.
Q4: Is the F025P resistant to pipeline vibration?
A4: Yes. The robust design of the F-Series includes high immunity to fluid, process, and environmental effects, ensuring stability even in vibrating industrial environments.
