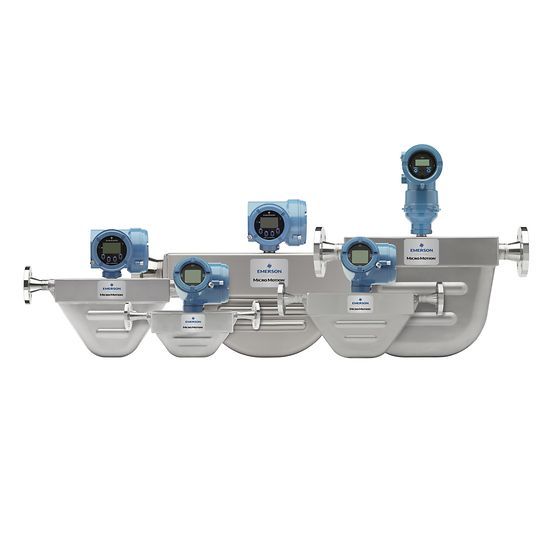

The Micro Motion F-Series is engineered for those who need high-performance Coriolis measurement without sacrificing space or ease of maintenance. Known for its highly robust and reliable performance, the F-Series is the industry’s preferred choice for process control applications where a self-draining sensor geometry is essential.
Available through
| Feature | Performance Range |
| Line Size Range | 1/4" to 4" (DN6 – DN100) |
| Liquid Accuracy | Up to ±0.1% of rate |
| Liquid Repeatability | ±0.05% of rate |
| Density Accuracy | Up to ±0.0005 $g/cm^3$ |
| Gas Accuracy | Up to ±0.35% of rate |
| Pressure Range | Up to 6,250 psig (430 barg) |
| Temperature Range | -148°F to 662°F (-100°C to 350°C) |
| Turndown Ratio | 20:1 |
Superior Self-Draining Geometry: The unique F-Series sensor design ensures that no fluid or residue is trapped inside the meter. This is critical for processes involving product changeovers, hygienic applications, or fluids that might solidify if left stagnant.
Compact Footprint: Engineered for tight spaces, the F-Series is perfect for skid-mounted systems and modular process plants where ELITE-sized meters may not fit.
Smart Meter Verification (SMV): Gain absolute measurement integrity in real-time. SMV checks the health of your sensor without stopping the flow or breaking the process line, reducing maintenance costs and downtime.
MVD (Multivariable Digital) Technology: Experience the industry's fastest response rates. MVD technology ensures precise batching and high-speed process control by delivering high-fidelity digital signal processing.
Robust Material Options: Available in both 316L Stainless Steel and Nickel Alloy C22 across all sizes, providing the durability needed for corrosive and high-pressure environments.
Global Metrology & Safety Standards: Fully certified for Custody Transfer (MID, NTEP, OIML R117) and hazardous areas (ATEX, IECEx, CSA).
Pair your F-Series sensor with Emerson’s advanced transmitters to unlock expansive I/O and communication protocols:
Analog & Legacy: mA, Frequency, Discrete, HART.
Industrial Bus: Modbus (RS-485), FOUNDATION Fieldbus.
Modern Ethernet: EtherNet/IP, PROFINET.
Q: When should I choose the F-Series over the ELITE Series?
A: Choose the F-Series when your installation requires a compact, self-draining meter for vertical piping or when space on a skid is limited. While ELITE offers the highest absolute precision, the F-Series provides excellent reliability (±0.1%) in a more versatile form factor.
Q: Is the F-Series suitable for hygienic applications?
A: Yes. Its drainable design and availability in high-polish finishes make it a popular choice for food, beverage, and pharmaceutical processes where CIP (Clean-in-Place) is required.
Q: Can it handle high-pressure applications?
A: Absolutely. Select F-Series models are rated up to 6,250 psig (430 barg), making them ideal for high-pressure chemical injection and gas distribution.
Q4: Why source the F-Series from Hanyu Zhilian?
A: We provide 100% original and brand-new Emerson products, each accompanied by a comprehensive documentation package including Material Traceability Reports (MTRs) and original Factory Calibration Certificates. We understand the critical nature of process control, which is why we offer dedicated technical support and secure international logistics for every F-Series meter we ship.
