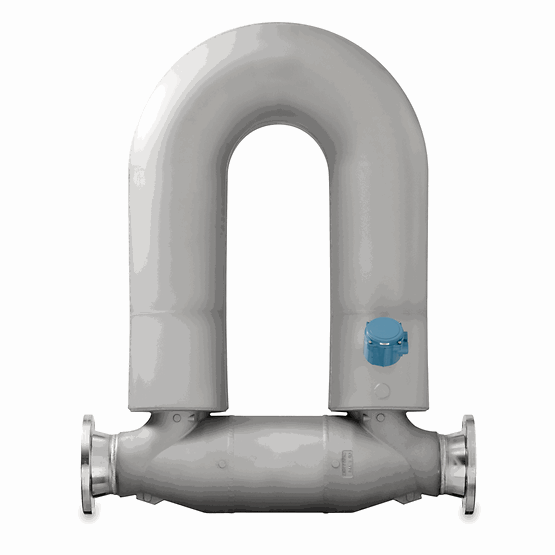

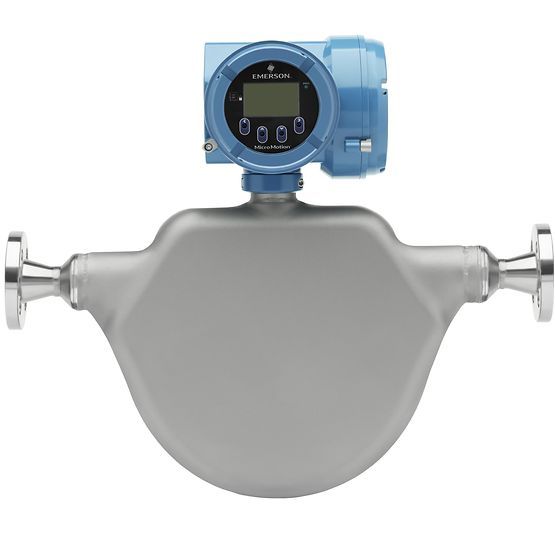

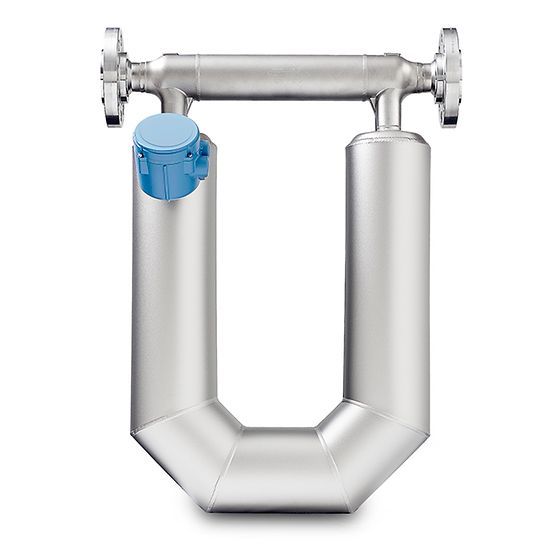

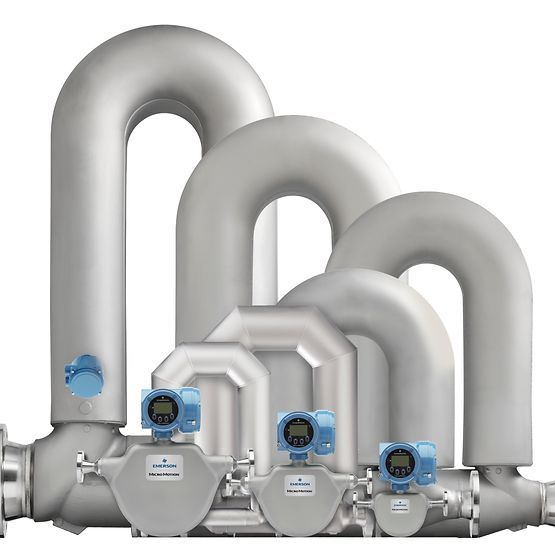

The Micro Motion ELITE series represents the pinnacle of flow and density measurement technology. Designed to perform in the most challenging environments, ELITE meters deliver industry-leading accuracy and repeatability across an expansive range of line sizes—from the micro-flow 1/12 inch (DN1) to the high-capacity 14 inch (DN350).
Available through
| Feature | Performance Range |
| Line Size Range | 1/12" to 14" (DN1 – DN350) |
| Liquid Accuracy | ±0.10% to ±0.05% of rate |
| Liquid Repeatability | ±0.05% to ±0.025% of rate |
| Density Accuracy | ±0.0005 to ±0.0002 $g/cm^3$ |
| Gas Accuracy | ±0.25% of rate |
| Temperature Range | -454°F to 800°F (-270°C to 426°C) |
| Max Pressure | Up to 6,000 psig (414 barg) |
| Wetted Materials | 316L Stainless Steel, Nickel Alloy C-22, Super-Duplex |
Unmatched Sensitivity: The unique ELITE sensor geometry allows for an incredible 59:1 turndown ratio, maintaining peak accuracy even at flow rates where other meters lose signal.
Smart Meter Verification (SMV): Gain real-time, in-process assurance of your meter’s health. SMV allows you to check the structural and electronic integrity of the sensor in under 90 seconds without interrupting the process.
Maximum Environmental Immunity: ELITE meters are designed to be virtually immune to external pipe stress, vibration, and changing process conditions, ensuring a stable "zero" and consistent performance.
Comprehensive Material Selection: Choose from 316L Stainless Steel for general service, Nickel Alloy C-22 for aggressive corrosives, or Super-Duplex for high-pressure subsea applications.
Multivariable Digital Power: A single ELITE device provides simultaneous measurement of mass flow, volume flow, density, concentration, and temperature, simplifying your instrumentation footprint.
Global Compliance & Safety: Certified for SIL2/SIL3, ATEX, IECEx, and marine applications. Fully approved for custody transfer (NTEP, MID, Measurement Canada).
The ELITE series pairs with Emerson’s industry-leading transmitters to offer the most expansive I/O options in the market:
Traditional: mA, Frequency, Discrete, HART.
Digital Bus: Modbus (RS-485), FOUNDATION Fieldbus.
Industrial Ethernet: EtherNet/IP, PROFINET.
Q: What makes the ELITE series different from the F-Series?
A: While the F-Series is excellent for general purpose and drainable applications, the ELITE series is the high-performance tier. It offers higher sensitivity, better density accuracy (up to ±0.0002 g/cc), and handles wider temperature/pressure extremes.
Q: Can ELITE meters handle entrained gas (two-phase flow)?
A: Yes. ELITE sensors, especially when paired with 5700 transmitters, are designed to maintain measurement stability in challenging liquid-gas mixtures or slurries.
Q: Are these meters suitable for LNG or Liquid Hydrogen?
A: Absolutely. The ELITE series is the industry standard for cryogenic applications, with models rated down to -454°F (-270°C).
Q4: Why source the ELITE series from Hanyu Zhilian?
A: We provide 100% original and brand-new Emerson products, each accompanied by a comprehensive documentation package including Material Traceability Reports (MTRs) and original Factory Calibration Certificates. For critical infrastructure and high-value custody transfer projects, we provide reinforced packaging and dedicated technical support to ensure your assets are protected and optimized.
