High-pressure Micro Motion CMFS150P (1.5" DN40). Features Nickel Alloy C22 construction, 3,626 psig rating, and ±0.10% accuracy. Ideal for corrosive & high-pressure gas/liquid.
Product Overview

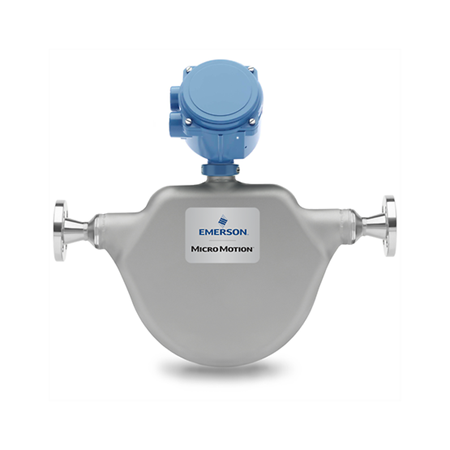

The Micro Motion ELITE CMFS150P is a peak-performance, high-pressure Coriolis flow meter engineered for the most demanding industrial processes. Featuring a 1 1/2-inch (DN40) line size, this meter combines the extreme corrosion resistance of Nickel Alloy C22 wetted parts with the structural integrity of 316L Stainless Steel fittings. Its uniquely drainable design ensures no fluid retention, making it perfect for critical high-pressure liquid, gas, and slurry applications.
Technical Specifications
Line Size: 1 1/2 Inch (DN40)
Wetted Material: Nickel Alloy C22
Pressure Rating: 3,626 psig (250 barg) - Options up to 6,000 psig.
Mass Flow Accuracy (Liquid): ±0.10% of rate
Density Accuracy (Liquid): ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Range: -400°F to 662°F (-240°C to 350°C)
Approvals: UL, CSA, IECEx, NEPSI, ATEX, SIL2/3, Marine.
Core Features & Benefits
High Pressure Capability: Specifically built for applications requiring up to 3,626 psig (250 barg) as standard.
Superior Corrosion Resistance: C22 Alloy wetted parts provide unmatched longevity in aggressive chemical environments.
Real-Time Integrity: Includes Smart Meter Verification (SMV) for in-process calibration assurance without stopping the flow.
Exceptional Stability: Unmatched immunity to environmental and process effects ensures measurement confidence in slurries or complex fluids.
Enhanced Safety: Available with rupture disks or purge fitting cases for added security in volatile applications.
Q: What makes the CMFS150P different from standard CMF series? A: The "P" in CMFS150P stands for high pressure. It is specifically reinforced for 3,626 psig (250 barg) service while utilizing C22 alloy for superior chemical resistance.
Q: Is this meter suitable for gas flow measurement? A: Yes. The CMFS150P offers a gas mass flow accuracy of ±0.25%, making it one of the most accurate meters for high-pressure gas dispensing and processing.
Q: Can the CMFS150P handle cryogenic or high-heat fluids? A: Absolutely. It supports an extreme process range from -240°C to 350°C, making it versatile for both cryogenic LPG/LNG and high-temperature steam or chemical processes.
